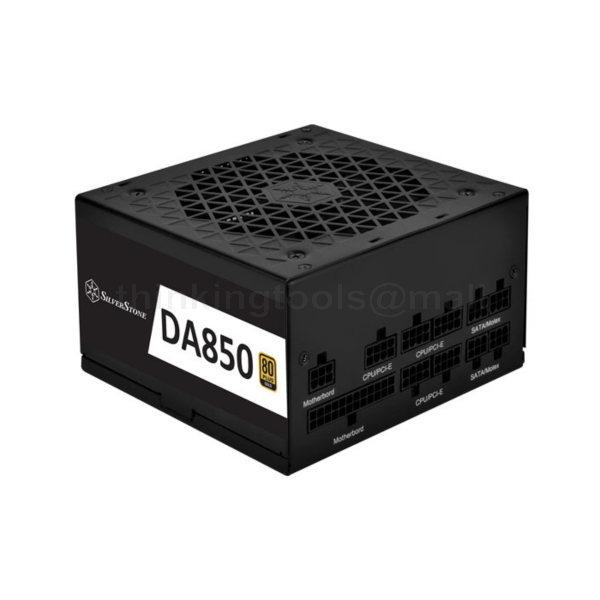

SILVERSTONE DA850G DECATHLON 850W PSU

0 Review
₱7,100.00
Availability: In stock
SKU:
PSU-SST-DA850G

The SilverStone DA850G Decathlon 850W PSU delivers exceptional efficiency with its 80 PLUS Gold certification and operates continuously at 40°C, ensuring reliable power for demanding systems. It features a class-leading single +12V rail, a silent 120mm FDB fan with a minimum noise level of 18 dBA, and Japanese electrolytic capacitors for stable performance. The compact 140mm depth design and specially designed cover enhance heat dissipation, while modular flat cabling provides seamless integration and neatness.

Brands:

Specifications:

  • Model (Safety Certification): SST-AX0850MCGD-A

  • Color: Black (lead-free paint)

  • Max. DC Output: 850W

  • Power Density: 471W per liter

  • Load Range:

    • +3.3V Max. (Amps): 20A

    • +5V Max. (Amps): 20A

    • +12V Max. (Amps): 70.5A

    • +5VSB Max. (Amps): 2.5A

    • -12V Max. (Amps): 0.3A

    • +3.3V Peak (Amps): /

    • +5V Peak (Amps): /

    • +12V Peak (Amps): /

    • +5VSB Peak (Amps): /

    • -12V Peak (Amps): 3.0A

    • +3.3V Min. (Amps): 0A

    • +5V Min. (Amps): 0A

    • +12V Min. (Amps): 0A

    • +5VSB Min. (Amps): 0A

    • -12V Min. (Amps): 0A

    • Voltage Range (%): ±3% (+3.3V, +5V, +12V, +5VSB), ±10% (-12V)

    • Line Regulation (%): ±1%

    • Ripple (mVp-p): 30mV (+3.3V, +5V, +5VSB), 40mV (+12V, -12V)

    • Combined +3.3V & +5V: 110W

    • Combined +12V: 846W

  • Input Voltage: 90 ~ 264 Vrms

  • Input Frequency Range: 47Hz ~ 63Hz

  • PFC: Active PFC (PF > 0.9 at full load)

  • Efficiency: 87% ~ 90% (at 20% ~ 100% loading)

  • MTBF: 100,000 hours

  • Operating Temperature: 0 ~ 40°C

  • Protection:

    • Over Current Protection

    • Over Power Protection

    • Over Voltage Protection

    • Short Circuit Protection

    • Over Temperature Protection

  • Connectors:

    • 1 x 24 / 20-Pin Motherboard Connector (600mm)

    • 2 x 8 / 4-Pin EPS / ATX 12V Connectors (750mm each)

    • 2 x 8 / 6-Pin PCIe Connectors (650mm / 150mm each)

    • 8 x SATA Connectors (600mm / 150mm / 150mm / 150mm each)

    • 6 x 4-Pin Peripheral Connectors + 2 x 4-Pin Floppy Adapter Connectors (600mm / 150mm / 150mm / 150mm each)

  • Cooling System: Silent 120mm FDB Fan

  • Noise Level: 18 dBA minimum

  • Certification: 80 PLUS Gold

  • Form Factor: ATX (PS2)

  • Dimensions (W x H x D): 150 mm x 86 mm x 140 mm

  • Weight: 1.46 kg

  • Other: GPU Support list
