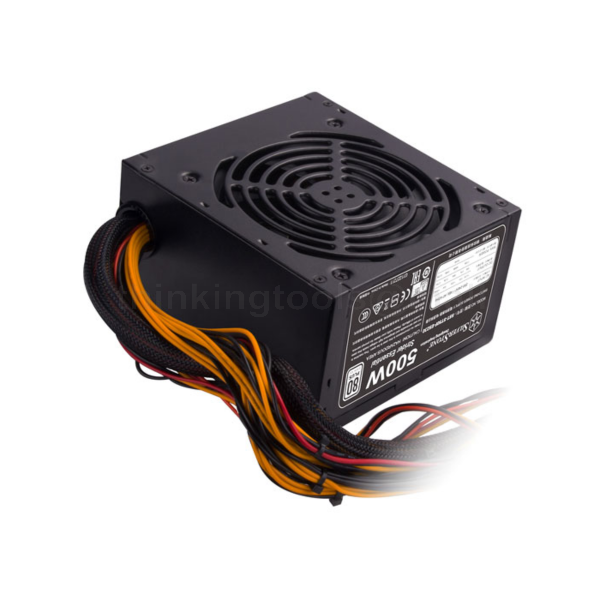

SILVERSTONE ST50F-ES230 STRIDER 500W PSU
The SilverStone ST50F-ES230 Strider 500W PSU delivers robust and reliable power with a high efficiency of 82% to 85%, making it an excellent choice for your PC build. Its silent 120mm fan ensures quiet operation while the compact design fits seamlessly into any case. Equipped with essential protections and a solid 500W output, this PSU provides stable performance and peace of mind for your system's power needs.
Specifications:
-
Product No.: SST-ST50F-ES230
-
Max. DC Output: 500W
-
Power Density: 277W per liter
-
Load Range:
-
+3.3V Max. (Amps): 18A
-
+5V Max. (Amps): 17A
-
+12V Max. (Amps): 38A
-
+5VSB Max. (Amps): 2.5A
-
-12V Max. (Amps): 0.3A
-
+3.3V Peak (Amps): /
-
+5V Peak (Amps): /
-
+12V Peak (Amps): /
-
+5VSB Peak (Amps): /
-
-12V Peak (Amps): /
-
+3.3V Min. (Amps): 0A
-
+5V Min. (Amps): 0A
-
+12V Min. (Amps): 0A
-
+5VSB Min. (Amps): 0A
-
-12V Min. (Amps): 0A
-
Voltage Range (%): ±5% (+3.3V, +5V, +12V, +5VSB), ±10% (-12V)
-
Line Regulation (%): ±1%
-
Ripple (mVp-p): 50mV (+3.3V, +5V, +5VSB), 120mV (+12V, -12V)
-
Combined +3.3V & +5V: 110W
-
Combined +12V: 456W
-
-
Input Voltage: 180 ~ 264 Vrms
-
Input Frequency Range: 47Hz ~ 63Hz
-
PFC: Active PFC (PF > 0.9 at Full Load)
-
Efficiency: 82% ~ 85% (at 20% ~ 100% loading)
-
MTBF: 100,000 hours
-
Operating Temperature: 0°C ~ 40°C
-
Protection:
-
Over Power Protection
-
Over Voltage Protection
-
Short Circuit Protection
-
-
Connectors:
-
1 x 24 / 20-pin Motherboard Connector (500mm)
-
1 x 8 / 4-Pin EPS / ATX 12V Connector (750mm)
-
2 x 8 / 6-Pin PCIe Connectors (500mm / 150mm each)
-
2 x SATA Connectors and 1 x 4-Pin Peripheral Connector and 1 x 4-Pin Floppy Connector (500mm / 150mm / 150mm / 150mm)
-
2 x SATA Connectors and 2 x 4-Pin Peripheral Connectors (500mm / 150mm / 150mm / 150mm)
-
-
Cooling System: Silent 120mm Fan
-
Noise Level: 18 dBA minimum
-
Certification: 80 PLUS
-
Dimensions (W x H x D): 150 mm x 86 mm x 140 mm
-
Weight: 1.31 kg
-
Other: GPU Support list
| Color | Black |
|---|
