Specifications:
-
Wireless:
-
Standards:
-
Wi-Fi 6 (IEEE 802.11ax/ac/n/a 5 GHz)
-
IEEE 802.11ax/n/b/g 2.4 GHz
-
-
Wi-Fi Speeds:
-
5 GHz: Up to 2402 Mbps (802.11ax, HE160)
-
2.4 GHz: Up to 574 Mbps (802.11ax)
-
-
Wi-Fi Range: Covers 3-bedroom houses
-
Beamforming: Concentrates signal strength towards clients
-
High-Power FEM: Improves signal coverage
-
Wi-Fi Capacity: High
-
Dual-Band: Allocates devices to different bands for optimal performance
-
OFDMA: Simultaneous communication with multiple Wi-Fi 6 clients
-
Airtime Fairness: Limits excessive network occupation
-
4 Streams: More bandwidth for connected devices
-
Working Modes: Router Mode, AP Mode
-
-
Security:
-
Network Security: TP-Link HomeShield
-
Real-Time IoT Protection
-
Malicious Site Blocker
-
Intrusion Prevention System
-
DDoS Attack Prevention
-
Home Network Scanner
-
-
Guest Network:
-
1× 5 GHz Guest Network
-
1× 2.4 GHz Guest Network
-
-
VPN Server:
-
PPTP Server
-
OpenVPN Server
-
-
Wi-Fi Encryption: WPA/WPA2, WPA3, WPA/WPA2-PSK
-
-
Hardware:
-
Ethernet Ports:
-
1× Gigabit WAN Port
-
1× Gigabit LAN Port
-
-
Buttons:
-
WPS Button
-
Reset Button
-
-
Dimensions: 210 × 140 × 10.8 mm (8.3 × 5.5 × 0.4 in)
-
Power Consumption: 12.6W
-
-
Software:
-
Protocols: IPv4, IPv6
-
Service Kits: HomeShield
-
EasyMesh: Compatible with EasyMesh technology
-
Parental Controls:
-
Custom Profiles
-
Professional Content Filter Library
-
Family Time, Bedtime, Off Time
-
Time Rewards, Family Online Time Ranking
-
Pause the Internet
-
Weekly and Monthly Reports
-
-
WAN Types:
-
Dynamic IP
-
Static IP
-
PPPoE
-
PPPoE + Dynamic IP
-
PPPoE + Static IP
-
L2TP + Dynamic IP
-
L2TP + Static IP
-
PPTP + Dynamic IP
-
PPTP + Static IP
-
-
Quality of Service: QoS by Device
-
Cloud Service:
-
FOTA Firmware Upgrade
-
TP-Link ID
-
DDNS
-
-
NAT Forwarding:
-
Port Forwarding
-
Port Triggering
-
DMZ
-
UPnP
-
-
IPTV:
-
Profile
-
Bridge
-
Custom
-
Allowed range of VLAN ID
-
-
DHCP:
-
DHCP Server
-
Address Reservation
-
DHCP Client List
-
-
DDNS:
-
TP-Link
-
NO-IP
-
DynDNS
-
-
Management:
-
Tether App
-
Webpage
-
-
-
Other:
-
System Requirements:
-
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
-
Cable or DSL Modem (if needed)
-
Subscription with an internet service provider
-
-
Certifications: FCC, CE, RoHS
-
Environment:
-
Operating Temperature: 0℃ to 40℃ (32℉ to 104℉)
-
Storage Temperature: -40℃ to 60℃ (-40℉ to 140℉)
-
Operating Humidity: 10% to 90% non-condensing
-
Storage Humidity: 5% to 90% non-condensing
-
-
-
Test Data:
-
Wi-Fi Transmission Power:
-
CE: <20dBm (2.4GHz), <23dBm (5.15GHz
5.35GHz), <30dBm (5.47GHz5.725GHz) -
FCC: <30dBm (2.4GHz & 5.15GHz~5.825GHz)
-
-
Wi-Fi Reception Sensitivity:
-
5GHz-band1:
-
11a 6Mbps: -97dBm
-
11a 54Mbps: -78dBm
-
11ac HT20 MCS8: -74dBm
-
11ac HT40 MCS9: -69dBm
-
11ac HT80 MCS9: -65dBm
-
11ax HE20 MCS0: -97dBm
-
11ax HE20 MCS11: -66dBm
-
11ax HE40 MCS0: -94dBm
-
11ax HE40 MCS11: -63dBm
-
11ax HE80 MCS0: -91dBm
-
11ax HE80 MCS11: -60dBm
-
11ax HE160 MCS0: -88dBm
-
11ax HE160 MCS11: -58dBm
-
-
5GHz-band2: (Same as 5GHz-band1)
-
5GHz-band3: (Same as 5GHz-band1)
-
2.4GHz:
-
11g 6Mbps: -96dBm
-
11g 54Mbps: -78dBm
-
11n HT20 MCS7: -76dBm
-
11n HT40 MCS7: -72dBm
-
11ax HE20 MCS0: -95dBm
-
11ax HE20 MCS11: -65dBm
-
11ax HE40 MCS0: -93dBm
-
11ax HE40 MCS11: -62dBm
-
-
-
-
Package Contents:
-

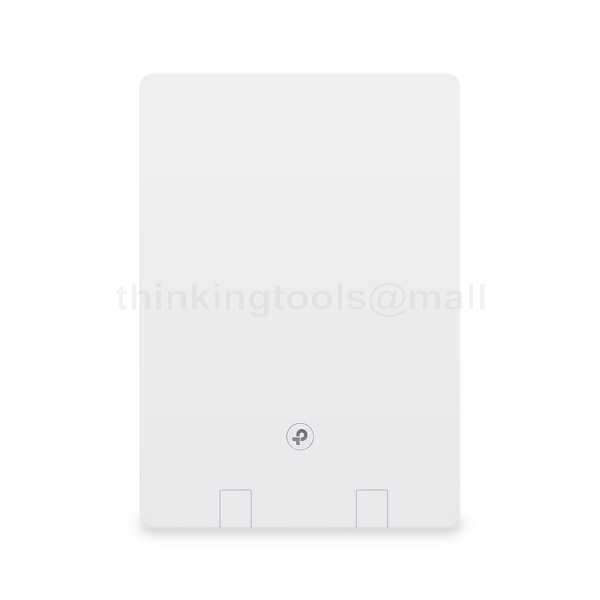

Wireless Router Archer Air R5
-
Quick Installation Guide
-
Power Adapter
-
Plastic Bracket
-
Gigabit Network Cable
-
Installation Accessories
-
