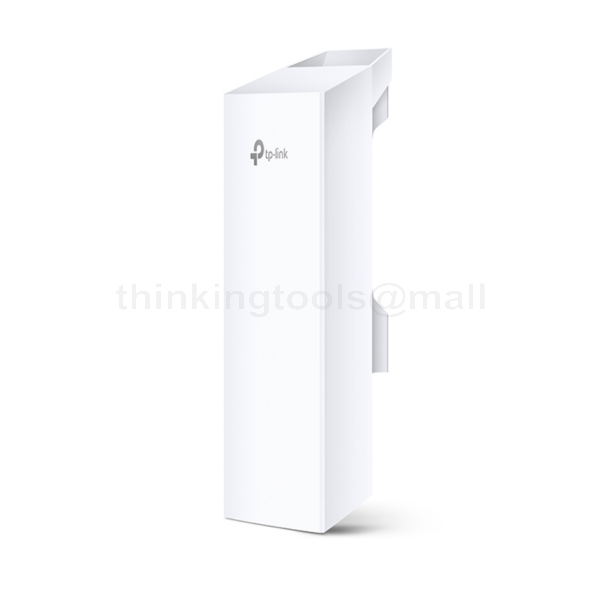

TPLINK CPE510 300MBPS 5GHZ 13DBI OUTDOOR CPE

Specifcations:

• Hardware Features

  • Processor: Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc

  • Memory: 64MB DDR2 RAM, 8MB Flash

  • Interface:

    • 1 × 10/100Mbps Shielded Ethernet Port (Passive PoE in)

    • 1 × Grounding Terminal

    • 1 × Reset Button

  • Power Supply: Passive Power over Ethernet via LAN0 (+4,5 pins; -7,8 pins)

    • Voltage range: 16-27VDC

  • Power Consumption: 10.5 Watts Max

    • Note: Power drawn may increase based on cable length when using Passive PoE

  • Dimensions (W x D x H): 8.8 × 3.1 × 2.4 in (223 × 79 × 60 mm)

  • Antenna Type: Built-in 13dBi 2 × 2 Dual-polarized Directional Antenna

    • Beam Width: 45° (H-Plane) / 30° (E-Plane)

  • Protection:

    • 15KV ESD Protection

    • 6KV Lightning Protection

  • Enclosure: Outdoor ASA stabilized plastic material

    • IPX5 waterproof certification

• Wireless Features

  • Wireless Standards: IEEE 802.11a/n (with Pharos MAXtream disabled)

  • Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)

  • Wireless Speeds:

    • Up to 300 Mbps (40MHz, Dynamic)

    • Up to 144.4 Mbps (20MHz, Dynamic)

    • Up to 72.2 Mbps (10MHz, Dynamic)

    • Up to 36.1 Mbps (5MHz, Dynamic)

  • Frequency: 5.15~5.85GHz

    • Note: Available operating frequency may vary by region

  • Transmission Power: 23dBm/200mw (Adjustable power by 1dBm)

    • Note: Maximum power may vary by region

• Software Features

  • Wireless Configurations:

    • Pharos MAXtream TDMA Technology

    • 802.11a/n Modes

    • Selectable Channel Width: 5/10/20/40MHz

    • Automatic Channel Selection

    • Transmission Power Control

    • Dynamic Frequency Selection (DFS)

    • WDS Enable/Disable

    • Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP), 64/128/152-bit WEP

    • SSID Broadcast Enable/Disable

    • Multi-SSID with VLAN Tagging (AP mode only)

    • Distance/ACK Timeout Setting

    • Wireless MAC Address Filter

    • Advanced Wireless Features: Beacon Interval, RTS Threshold, Fragmentation Threshold, DTIM Interval, AP Isolation, Short GI, Wi-Fi Multimedia

• Management:

  • • Discovery and Remote Management via Pharos Control application

    • HTTP/HTTPS Web-based Management

    • System Log

    • SNMP Agent (v2c)

    • Ping Watch Dog

    • Dynamic DDNS

    • SSH Server

  • System Tools:

    • Wireless Signal Quality Indicators: Signal Strength, Noise, Transmit CCQ, CPU, Memory

    • Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, DHCP

    • Spectrum Analyzer

    • Speed Test

    • Ping

    • Traceroute

  • System-level Optimizations: Optimized IGMP Snooping/Proxy for multicast applications, Hardware watch dog

• PoE Adapter Features

  • Dimensions (W x D x H): 4.3 × 2.2 × 1.3 in (110 × 56 × 33 mm)

  • Interfaces:

    • 1 × AC Jack with Earth Ground

    • 1 × 10/100Mbps Shielded Ethernet Port (Power + Data)

    • 1 × 10/100Mbps Shielded Ethernet Port (Data)

  • Button: Remote Reset Button

  • Power Status LEDs: Green

  • Input: 100-240VAC, 50/60Hz

  • Output: 24VDC, 1A Max

    • +4, 5 pins; -7, 8 pins (Supports up to 60m Power over Ethernet)

  • Efficiency: >80%

  • Certifications: CE/FCC

• Others

  • Certification: FCC, RoHS, IPX5

  • Package Contents:

    • Outdoor Wireless CPE

    • 24V 1A Passive PoE Adapter

    • Pole Mounting Straps

    • AC Power Cord

    • Installation Guide

  • System Requirements: Google Chrome, Safari, and Firefox browsers for web GUI management

  • Environment:

    • Operating Temperature: -30°C ~ 70°C (-22°F ~ 158°F)

    • Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

    • Operating Humidity: 10% ~ 90% non-condensing

    • Storage Humidity: 5% ~ 95% non-condensing
