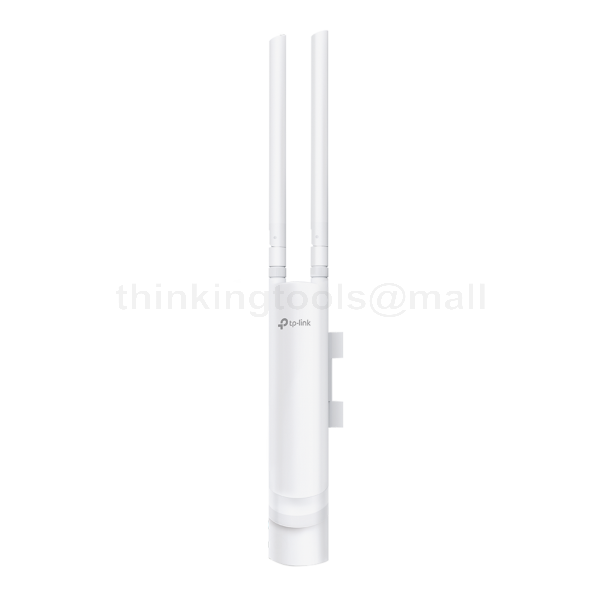

TPLINK EAP110-OUTDOOR 300MBPS WIRELESS N ACCESS POINT
The EAP110-Outdoor offers robust outdoor Wi-Fi performance with speeds up to 300 Mbps, high-gain antennas, and a weatherproof design for reliable connectivity in all conditions. It supports Passive PoE for simple installation and features a detachable antenna system for flexible deployment. With Omada Controller Software for centralized management and a captive portal for guest authentication, it ensures efficient network control and ease of use.
Specifications:
-
Hardware Features:
-
Interface: 1 × Fast Ethernet (RJ-45) Port (Supports Passive PoE)
-
Button: Reset
-
Power Supply: 24V Passive PoE (+4,5 pins; -7,8 pins; PoE Adapter Included)
-
Power Consumption: 3.1 W
-
Dimensions (W x D x H): 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm)
-
Antenna Type: 2 × 3dBi External Omni Waterproof
-
Weatherproof Enclosure: IP65
-
Mounting: Pole or wall mounting (mounting kit included)
-
-
Wireless Features:
-
Wireless Client Capacity: 100+**
-
Concurrent Clients: 100+**
-
Wireless Standards: IEEE 802.11n/g/b
-
Frequency: 2.4 GHz
-
Signal Rate:
-
11n: Up to 300 Mbps*
-
11g: Up to 54 Mbps*
-
11b: Up to 11 Mbps*
-
-
Transmit Power: < 27 dBm
-
Wireless Functions:
-
Multiple SSIDs (Up to 8 SSIDs)
-
Enable/Disable Wireless Radio
-
Automatic Channel Assignment
-
Transmit Power Control (adjustable on 1 dBm step)
-
QoS (WMM)
-
Load Balance
-
Rate Limit
-
Reboot Schedule
-
Wireless Schedule
-
Wireless Statistics based on SSID, AP, and Client
-
-
Wireless Security:
-
Captive Portal Authentication
-
Access Control
-
Wireless Mac Address Filtering
-
Wireless Isolation Between Clients
-
SSID to VLAN Mapping
-
Rogue AP Detection
-
802.1X Support
-
64/128/152-bit WEP / WPA / WPA2-Enterprise
-
WPA-PSK / WPA2-PSK
-
-
-
Management:
-
Omada App: Yes
-
Centralized Management:
-
Omada Hardware Controller (OC300)
-
Omada Hardware Controller (OC200)
-
Omada Software Controller
-
-
Cloud Access: Yes (Requires OC300, OC200, or Omada Software Controller)
-
Email Alerts: Yes
-
LED ON/OFF Control: Yes
-
Management MAC Access Control: Yes
-
SNMP: v1, v2c
-
System Logging Local/Remote Syslog: Local and Remote Syslog
-
SSH: Yes
-
Web-based Management: HTTP/HTTPS
-
L3 Management: Yes
-
Multi-site Management: Yes
-
Management VLAN: Yes
-
-
Others:
-
Certification: FCC, RoHS
-
Package Contents:
-
300Mbps Wireless N Outdoor Access Point (EAP110-Outdoor)
-
Passive PoE Adapter
-
Power Cord
-
Mounting Kit
-
Waterproof Rubber Insert
-
Waterproof Antennas
-
Installation Guide
-
-
Environment:
-
Operating Temperature: -30℃~65℃ (-22℉~149℉)
-
Storage Temperature: -40℃~70℃ (-40℉~158℉)
-
Operating Humidity: 10%~90% non-condensing
-
Storage Humidity: 5%~90% non-condensing
-
-
