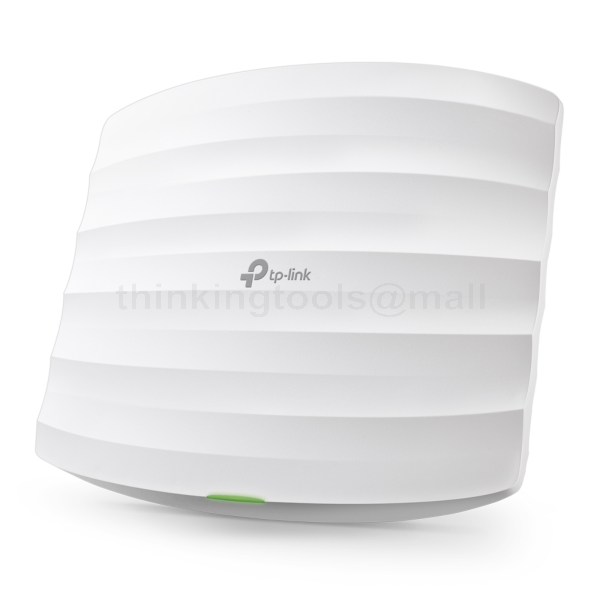

TPLINK EAP115 300MBPS WIRELESS N CEILING MOUNT ACCESS POINT
The Omada SDN-integrated access point offers centralized cloud management and intelligent monitoring for seamless control and convenience. It supports PoE for easy deployment and features a straightforward mounting design. With secure guest network options, load balancing, and scheduling capabilities, it ensures optimal performance and flexibility for managing Wi-Fi access.
Specifications:
-
Hardware Features:
-
Interface: 1× Fast Ethernet (RJ-45) Port (Supports IEEE 802.3af PoE)
-
Button: Reset
-
Power Supply: 802.3af PoE or external 9VDC/0.6A power supply
-
Power Consumption: 2.8 W
-
Dimensions (W x D x H): 7.5 × 6.7 × 1.2 in (189.5 × 170.5 × 29.7 mm)
-
Antenna Type: Internal 2 × 4 dBi Omni
-
Mounting: Ceiling/Wall Mounting (Kits included)
-
-
Wireless Features:
-
Wireless Client Capacity: 100+**
-
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
-
Frequency: 2.4–2.4835 GHz
-
Signal Rate:
-
11n: Up to 300 Mbps (dynamic)
-
11g: Up to 54 Mbps (dynamic)
-
11b: Up to 11 Mbps (dynamic)
-
-
Reception Sensitivity:
-
300M: -71dBm@10% PER
-
150M: -75dBm@10% PER
-
54M: -78dBm@10% PER
-
11M: -93dBm@8% PER
-
6M: -92dBm@10% PER
-
1M: -96dBm@8% PER
-
-
Wireless Functions:
-
Multiple SSIDs (Up to 8 SSIDs)
-
Enable/Disable Wireless Radio
-
Automatic Channel Assignment
-
Transmit Power Control (Adjustable on dBm)
-
QoS (WMM)
-
Rate Limit
-
Reboot Schedule
-
Wireless Schedule
-
Wireless Statistics based on SSID/AP/Client
-
-
Wireless Security:
-
Captive Portal Authentication
-
Access Control
-
Wireless MAC Address Filtering
-
Wireless Isolation Between Clients
-
SSID to VLAN Mapping
-
Rogue AP Detection
-
802.1X Support
-
64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
-
-
Transmission Power:
-
CE: ≤19 dBm (EIRP)
-
FCC: ≤21 dBm
-
-
-
Management:
-
Omada App: Yes
-
Centralized Management:
-
Omada Hardware Controller (OC300)
-
Omada Hardware Controller (OC200)
-
Omada Software Controller
-
-
Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
-
Email Alerts: Yes
-
LED ON/OFF Control: Yes
-
Management MAC Access Control: Yes
-
SNMP: v1, v2c
-
System Logging Local/Remote Syslog: Local and Remote Syslog
-
SSH: Yes
-
Web-based Management: HTTP/HTTPS
-
L3 Management: Yes
-
Multi-site Management: Yes
-
Management VLAN: Yes
-
-
Others:
-
Certification: CE, FCC, RoHS
-
Package Contents:
-
300 Mbps Wireless N Ceiling Mount Access Point EAP115
-
Power Adapter
-
Mounting Kits
-
Installation Guide
-
-
System Requirements: Microsoft Windows 11/10/8/7/Vista/XP, Linux
-
Environment:
-
Operating Temperature: 0–40°C (32–104°F)
-
Storage Temperature: -40–70°C (-40–158°F)
-
Operating Humidity: 10–90% RH non-condensing
-
Storage Humidity: 5–90% RH non-condensing
-
-
