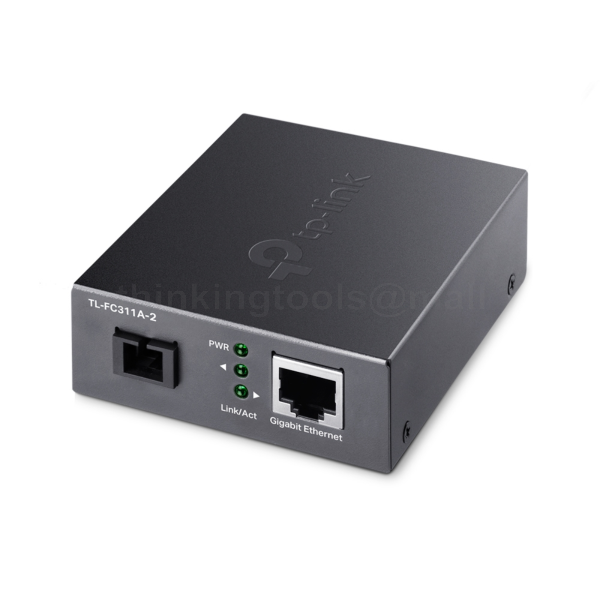

TPLINK FC311A-2 GIGABIT WDM MEDIA CONVERTER
This device features a 10/100/1000Mbps Auto-Negotiation RJ45 port with Auto-MDI/MDIX support, ensuring versatile connectivity. Utilizing WDM technology, it enables simultaneous data transmission and reception over a single fiber, extending the fiber distance up to 2 km for efficient long-range communication.
Specifications:
-
Network Standards and Protocols:
-
IEEE 802.3i
-
IEEE 802.3u
-
IEEE 802.3ab
-
IEEE 802.3z
-
-
Environment:
-
Operating Temperature: 0˚C to 50˚C (32˚F to 122˚F)
-
Storage Temperature: -40˚C to 70˚C (-40˚F to 158˚F)
-
Operating Humidity: 10% to 90% RH non-condensing
-
Storage Humidity: 5% to 90% RH non-condensing
-
-
Hardware Features:
-
Interface:
-
1× Gigabit SC Fiber Port
-
1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
-
-
Network Media:
-
Single-mode Fiber
-
UTP Category 5, 5e cable (maximum 100m)
-
-
Power Supply: External Power Adapter: 5 V/0.6 A
-
LED Indicators: PWR, Link/Act
-
Wave Length: 1550 nm TX, 1310 nm RX
-
Dimensions: 3.7 × 2.9 × 1.1 in (94.5 × 73.0 × 27.0 mm)
-
-
Media Converter & Module:
-
Fiber Type: 9/125 μm single-mode fiber (2 km max.)
-
-
Others:
-
Package Contents:
-
Media Converter TL-FC311A-2
-
Power Adapter
-
Installation Guide
-
-
