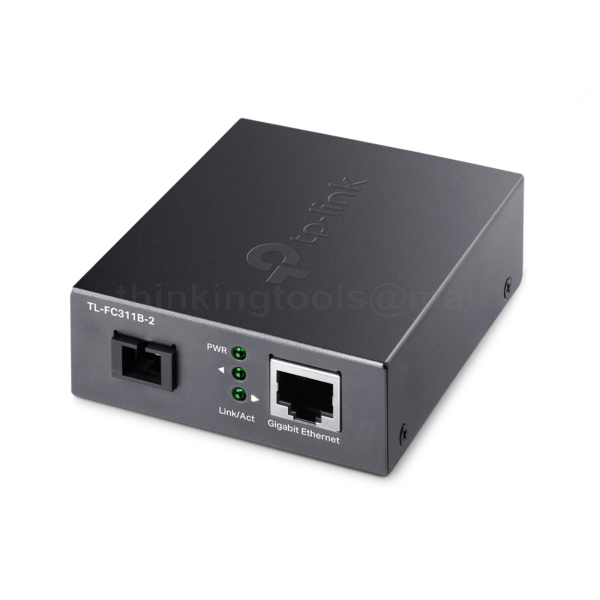

TPLINK FC311B-2 OMADA GIGABIT WDM MEDIA CONVERTER
The TL-FC311B-2 is a gigabit media converter that bridges electrical and optical signals, featuring a gigabit RJ-45 port and a gigabit SC fiber port. Utilizing WDM technology, it supports long-distance transmission up to 2 km over a single fiber, transmitting at 1310 nm and receiving at 1550 nm. Ideal for commercial applications like security monitoring and wireless networking, it pairs with compatible devices such as the TL-FC311A-2 for seamless data conversion.
-
Network Standards and Protocols
-
IEEE 802.3i (10BASE-T)
-
IEEE 802.3u (100BASE-TX)
-
IEEE 802.3ab (1000BASE-T)
-
IEEE 802.3z (1000BASE-LX)
-
-
Environmental Conditions
-
Operating Temperature: 0˚C to 50˚C (32˚F to 122˚F)
-
Storage Temperature: -40˚C to 70˚C (-40˚F to 158˚F)
-
Operating Humidity: 10% to 90% RH (non-condensing)
-
Storage Humidity: 5% to 90% RH (non-condensing)
-
-
Hardware Features
-
Interfaces:
-
1× Gigabit SC Fiber Port
-
1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
-
-
Network Media:
-
Single-mode Fiber (9/125 μm, ≤2 km)
-
UTP Category 5, 5e Cable (maximum 100m)
-
-
Power Supply: External Power Adapter, 5 V/0.6 A
-
LED Indicators: PWR, Link/Act
-
Dimensions: 94.5×73.0×27.0 mm (3.7×2.9×1.1 in)
-
Wavelengths:
-
1310 nm TX (Transmit)
-
1550 nm RX (Receive)
-
-
-
Media Converter & Module
-
Fiber Type: 9/125 μm Single-mode Fiber (≤2 km)
-
-
Package Contents
-
Media Converter TL-FC311B-2
-
Power Adapter
-
Installation Guide
-
