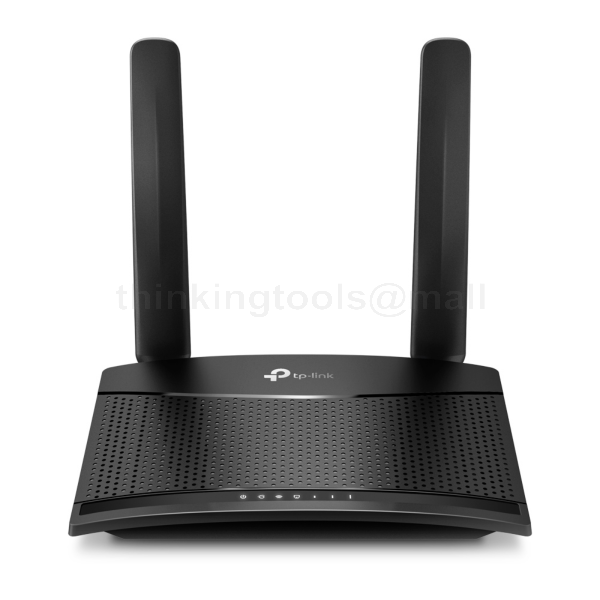

TPLINK MR100 300MBPS WIRELESS N 4G LTE ROUTER
The TL-MR100 is a 300 Mbps Wireless N 4G LTE Router that provides fast internet access with download speeds up to 150 Mbps and supports up to 32 Wi-Fi devices. It features a plug-and-play setup, requiring no configuration, and is compatible with SIM cards from over 100 countries. For added flexibility, it includes two detachable LTE antennas for enhanced connectivity and a LAN/WAN port for backup Ethernet access.
Specifications:
-
Hardware Features
-
Interface:
-
1 × 10/100 Mbps LAN Port
-
1 × 10/100 Mbps LAN/WAN Port
-
1 × Micro SIM Card Slot
-
-
Button: WPS/Reset Button
-
External Power Supply (EU): 9V/0.85A
-
Dimensions: 6.06 × 4.49 × 1.42 in (154 × 114 × 36 mm)
-
Antenna: 2 Detachable External 4G LTE Antennas
-
-
Wireless Features
-
Wireless Standards: IEEE 802.11b/g/n
-
Frequency: 2.4 GHz
-
Signal Rate: 300 Mbps
-
Reception Sensitivity:
-
11g 54M: -74 dBm
-
11n HT20: -71 dBm
-
11n HT40: -68 dBm
-
-
Transmit Power: < 20 dBm (2.4 GHz)
-
Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
-
WAN Failover: Yes
-
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
-
-
Network Type
-
4G:
-
FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
-
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
-
-
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
-
-
Software Features
-
Security: IPv4 SPI Firewall, IP and MAC Address Binding
-
Operating Modes: 3G/4G Router, Wireless Router
-
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access)
-
Management: Local Management, Remote Management
-
DHCP: Server, DHCP Client List, Address Reservation
-
Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
-
Dynamic DNS: DynDns, NO-IP
-
Protocols: IPv4, IPv6
-
Guest Network: 2.4 GHz Guest Network
-
Administration: Upgrade Firmware, Factory Default, System Log, Diagnostic Tools
-
-
Others
-
Certification: CE, RoHS
-
Package Contents:
-
300 Mbps Wireless N 4G LTE TL-MR100
-
Power Adapter
-
RJ45 Ethernet Cable
-
Quick Installation Guide
-
-
Requirements:
-
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10
-
MAC OS, NetWare, UNIX or Linux
-
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
-
Micro SIM Card
-
-
Environment:
-
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
-
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
-
Operating Humidity: 10%~90% non-condensing
-
Storage Humidity: 5%~90% non-condensing
-
-
