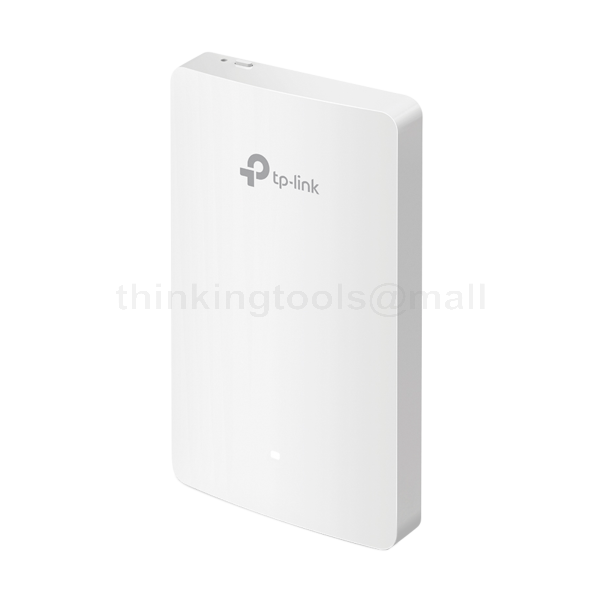

TPLINK OMADA EAP235 AC1200 WIRELESS MU-MIMO GIGABIT WALL-PLATE ACCESS POINT

Specifications:

• Hardware Features:

  • Interface:

    • Uplink port: 1 × 10/100/1000 Mbps Ethernet Port (accepts 802.3af or 802.3at PoE)

    • Access ports: 3 × 10/100/1000 Mbps Ethernet Ports with 1 PoE pass-through port

  • Physical Security Lock: Yes

  • Button: Reset

  • Power Supply: 802.3af/802.3at PoE

  • Power Consumption: 9.8 watts (24.4 watts with 13W PoE output)

  • Dimensions (W x D x H): 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

  • Antenna:

    • 2.4 GHz: 2 × 4 dBi

    • 5 GHz: 2 × 4 dBi

  • Mounting: Wall Plate Mounting

• Wireless Features:

  • Coverage: 25 m² (300 ft²)***

  • Wireless Client Capacity: 200+**

  • Concurrent Clients: 200+**

  • Wireless Standards: IEEE 802.11a/b/g/n/ac

  • Frequency: 2.4 GHz and 5 GHz

  • Signal Rate:

    • 5 GHz: Up to 867 Mbps

    • 2.4 GHz: Up to 300 Mbps

  • Wireless Functions:

    • 16 SSIDs (Up to 8 SSIDs per band)

    • Enable/disable SSID broadcast

    • Automatic channel assignment

    • Transmit power control (adjustable in 1 dBm steps)

    • QoS (WMM)

    • Band steering

    • Beamforming

    • Load balance

    • Rate limit

    • Scheduled reboot

    • Wireless schedule on/off

    • Wireless statistics based on SSID, access point, or client

  • Wireless Security:

    • Captive portal authentication

    • Access control list

    • Wireless MAC address filtering

    • Wireless isolation between clients

    • SSID to VLAN mapping

    • LAN port-based VLAN

    • Rogue AP detection

    • 802.1X EAP support

    • 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise

  • Transmission Power:

    • ≤21 dBm (2.4 GHz)

    • ≤21 dBm (5 GHz)

• Management:

  • Omada App: Yes

  • Centralized Management:

    • Omada Cloud-Based Controller

    • Omada Hardware Controller (OC300)

    • Omada Hardware Controller (OC200)

    • Omada Software Controller

  • Cloud Access: Yes

  • Email Alerts: Yes

  • LED ON/OFF Control: Yes

  • Management MAC Access Control: Yes

  • SNMP: v1, v2c

  • System Logging: Local/remote syslog

  • SSH: Yes

  • Web-based Management: HTTP/HTTPS

  • L3 Management: Yes

  • Multi-site Management: Yes

  • Management VLAN: Yes

  • Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)

• Others:

  • Certification: FCC, RoHS

  • Package Contents:

    • Omada AC1200 Wireless Gigabit Wall Plate Access Point EAP235-Wall

    • Installation guide

    • Mounting screw

  • Environment:

    • Operating Temperature: 0–40°C (32–104°F)

    • Storage Temperature: -40–70°C (-40–158°F)

    • Operating Humidity: 10–90% RH non-condensing

    • Storage Humidity: 5–90% RH non-condensing
