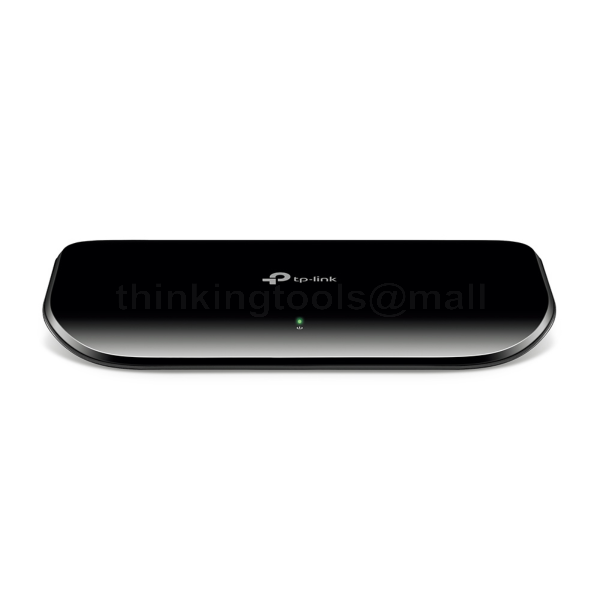

TPLINK SG1008D 8PORT GIGABIT SWITCH
The TP-Link 8-Port Gigabit Desktop Switch (TL-SG1008D) offers a seamless transition to Gigabit Ethernet with its 8 Auto-Negotiation RJ45 ports, supporting Auto MDI/MDIX. It features Green Ethernet technology to save up to 80% in power consumption, making it an eco-friendly choice. Ideal for home or office networks, this switch enhances network capacity and speeds up the transfer of large files, such as graphics and multimedia.
Specifications:
-
Hardware Features:
-
Standards and Protocols:
-
IEEE 802.3i
-
IEEE 802.3u
-
IEEE 802.3ab
-
IEEE 802.3x
-
-
Interface:
-
8 × 10/100/1000Mbps RJ45 Ports
-
Auto-Negotiation
-
Auto MDI/MDIX
-
-
Fan Quantity: Fanless
-
Physical Security Lock: No
-
Power Consumption:
-
Maximum: 4.63W (220V/50Hz)
-
-
External Power Supply:
-
External Power Adapter (Output: 5VDC / 0.6A)
-
-
Jumbo Frame: 15 KB
-
Switching Capacity: 16 Gbps
-
Dimensions (W × D × H):
-
7.1 × 3.5 × 1.0 in. (180 × 90 × 25.5 mm)
-
-
Max Heat Dissipation: 15.80 BTU/h
-
-
Software Features:
-
Transfer Method: Store and Forward
-
MAC Address Table: 4K
-
Advanced Functions:
-
Green Technology (saves up to 80% power)
-
802.3X Flow Control
-
Back Pressure
-
-
-
Others:
-
Certification:
-
FCC
-
CE
-
RoHS
-
-
Package Contents:
-
8-Port Gigabit Desktop Switch TL-SG1008D
-
Power Adapter
-
Installation Guide
-
-
System Requirements: None specified
-
Environment:
-
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
-
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
-
Operating Humidity: 10% ~ 90% non-condensing
-
Storage Humidity: 5% ~ 90% non-condensing
-
-
