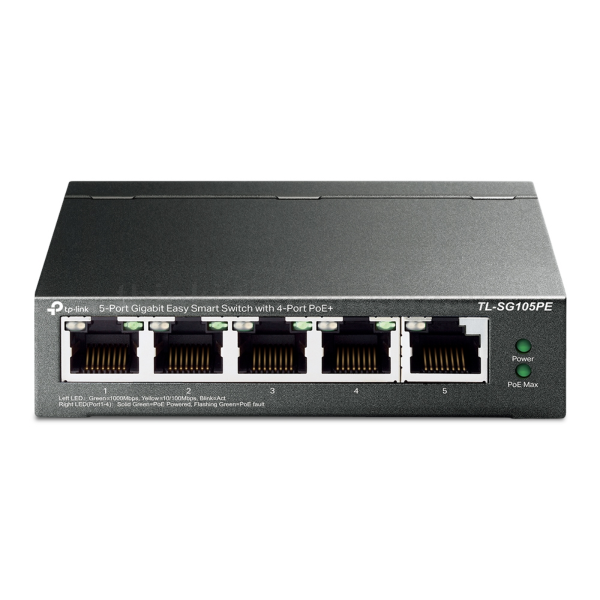

TPLINK SG105PE 5PORT GIGABIT EASY SMART SWITCH WITH 4PORT POE+

0 Review
₱2,790.00
Availability: Out of stock
SKU:
NET-TL-SWITCH-SG105PE

The TL-SG105PE is a 5-Port Gigabit Easy Smart Switch featuring four 802.3af/at PoE+ ports, each delivering up to 30W of power, and a total PoE power budget of 65W. It offers five 10/100/1000Mbps RJ45 ports, allowing for high-speed data transfer and simplified network setup with plug-and-play functionality. The switch includes advanced network management features such as VLAN, traffic prioritization, and PoE Auto Recovery, all managed through an intuitive web-based interface or Easy Smart Configuration Utility. Its fanless design ensures quiet operation and energy efficiency.

Brands:

Specifications:



  • HARDWARE FEATURES

    • Standards and Protocols:

      • IEEE 802.3i

      • IEEE 802.3u

      • IEEE 802.3ab

      • IEEE 802.3af

      • IEEE 802.3x

      • IEEE 802.1q

      • IEEE 802.1p

      • IEEE 802.3at

    • Interface:

      • Five 10/100/1000Mbps RJ45 Ports

      • AUTO Negotiation/AUTO MDI/MDIX

    • Network Media:

      • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

      • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

      • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

    • Fan Quantity: Fanless

    • Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A)

    • PoE Ports (RJ45):

      • Standard: 802.3 af/at compliant

      • PoE Ports: Port 1- Port 4

      • PoE Power Budget: 65 W

    • Dimensions: 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)

    • Max Power Consumption:

      • 4.52 W (220V/50Hz with no PD connected)

      • 75.16 W (220V/50Hz with 65 W PD connected)

    • Max Heat Dissipation:

      • 15.41 BTU/h (with no PD connected)

      • 256.30 BTU/h (with 65 W PD connected)

  • PERFORMANCE

    • Switching Capacity: 10 Gbps

    • Packet Forwarding Rate: 7.44 Mpps

    • MAC Address Table: 2 K

    • Packet Buffer Memory: 1 Mb

    • Jumbo Frame: 16 KB

  • SOFTWARE FEATURES

    • Quality of Service:

      • Support Port-Based/802.1p/DSCP priority

      • Support 4 priority queues

      • Rate Limit

      • Storm Control

    • L2 Features:

      • IGMP Snooping V1/V2/V3

      • Static Link Aggregation

      • Port Mirroring

      • Cable Diagnostics

      • Loop Prevention

      • PoE Auto Recovery

      • Extend Mode

    • VLAN:

      • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

      • MTU/Port/Tag VLAN

    • Management:

      • Web-based GUI

      • Easy Smart Configuration Utility

    • Transmission Method: Store-And-Forward

  • OTHERS

    • Certification: FCC, CE, RoHS

    • Package Contents:

      • TL-SG105PE

      • Power Adapter

      • Installation Guide

      • Rubber Feet

    • System Requirements: Microsoft® Windows® for running Utility

    • Environment:

      • Operating Temperature: 0℃~40℃ (32℉~104℉)

      • Storage Temperature: -40℃~70℃ (-40℉~158℉)

      • Operating Humidity: 10%~90% RH non-condensing

      • Storage Humidity: 5%~95% RH non-condensing
