Specifications:
-
Hardware Features
-
Interface:
-
16× 10/100/1000 Mbps RJ45 Ports
-
2× Gigabit SFP Slots
-
-
Fan Quantity: Fanless
-
Power Supply: 100-240 V AC~50/60 Hz
-
Dimensions (W x D x H): 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
-
Mounting: Rack Mountable
-
Max Power Consumption: 12.3 W
-
Max Heat Dissipation: 42.0 BTU/hr
-
-
Performance
-
Switching Capacity: 36 Gbps
-
Packet Forwarding Rate: 26.8 Mpps
-
MAC Address Table: 8K
-
Jumbo Frame: 9 KB
-
-
Software Features
-
Quality of Service:
-
8 priority queues
-
802.1p CoS/DSCP priority
-
Queue Scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
-
Bandwidth Control: Port/Flow based Rate Limiting
-
Action for Flows: Mirror, Redirect, Rate Limit, QoS Remark
-
-
L3 Features:
-
16 IPv4/IPv6 Interfaces
-
Static Routing: 48 static routes
-
Static ARP
-
316 ARP Entries
-
Proxy ARP
-
Gratuitous ARP
-
DHCP Server, Relay, L2 Relay
-
-
L2 and L2+ Features:
-
Link Aggregation: Static link aggregation, 802.3ad LACP (up to 8 groups, 8 ports/group)
-
Spanning Tree Protocol: 802.1d STP, 802.1w RSTP, 802.1s MSTP
-
Loopback Detection: Port-based, VLAN based
-
Flow Control: 802.3x Flow Control, HOL Blocking Prevention
-
Mirroring: Port Mirroring, CPU Mirroring (One-to-One, Many-to-One, Tx/Rx/Both)
-
-
L2 Multicast:
-
Supports 511 IGMP groups (IPv4, IPv6)
-
IGMP Snooping: v1/v2/v3, Fast Leave, Snooping Querier, IGMP Authentication
-
MVR
-
MLD Snooping: v1/v2, Fast Leave, Snooping Querier, Static Group Config
-
Multicast Filtering: 256 profiles, 16 entries/profile
-
-
Advanced Features:
-
Support for Omada Controllers (Hardware & Software)
-
Automatic Device Discovery, Batch Configuration, Firmware Upgrading
-
Intelligent Network Monitoring, Abnormal Event Warnings
-
Unified Configuration, Reboot Schedule, ZTP (Zero-Touch Provisioning)
-
-
VLAN:
-
Max 4K VLAN Groups
-
802.1q Tagged VLAN, MAC VLAN, Protocol VLAN, GVRP
-
VLAN VPN (QinQ): Port-Based, Selective
-
Voice VLAN
-
-
Access Control List (ACL):
-
Time-based ACL
-
MAC ACL: Source/Destination MAC, VLAN ID, User Priority, Ether Type
-
IP ACL: Source/Destination IP, Fragment, IP Protocol, TCP Flag, Port, DSCP/IP TOS, User Priority
-
Combined ACL, Packet Content ACL, IPv6 ACL
-
Policy: Mirroring, Redirect, Rate Limit, QoS Remark
-
ACL apply to Port/VLAN
-
-
Security:
-
IP-MAC-Port Binding, DHCP Snooping, ARP Inspection, IPv4 Source Guard
-
IPv6-MAC-Port Binding, DHCPv6 Snooping, ND Detection, IPv6 Source Guard
-
DoS Defend, Static/Dynamic Port Security (up to 64 MAC addresses/port)
-
Broadcast/Multicast/Unicast Storm Control
-
IP/Port/MAC based access control
-
802.1X: Port/MAC based authentication, VLAN Assignment, MAB, Guest VLAN, Radius Authentication
-
AAA (including TACACS+), Port Isolation
-
Secure web management (HTTPS with SSLv3/TLS 1.2), CLI management (SSHv1/SSHv2)
-
-
IPv6:
-
Dual IPv4/IPv6
-
MLD Snooping, IPv6 ACL, IPv6 Interface
-
Static IPv6 Routing, IPv6 Neighbor Discovery (ND)
-
Path MTU Discovery, ICMPv6, TCPv6/UDPv6
-
IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP/SSH/SSL/Http/Https/TFTP
-
-
Management:
-
Web-based GUI, CLI (through console port, telnet)
-
SNMPv1/v2c/v3 (Trap/Inform, RMON 1,2,3,9 groups)
-
SDM Template, DHCP/BOOTP Client
-
802.1ab LLDP/LLDP-MED, DHCP AutoInstall
-
Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics
-
EEE, Password Recovery, SNTP, System Log
-
-
-
Others
-
Certification: CE, FCC, RoHS
-
Package Contents:
-

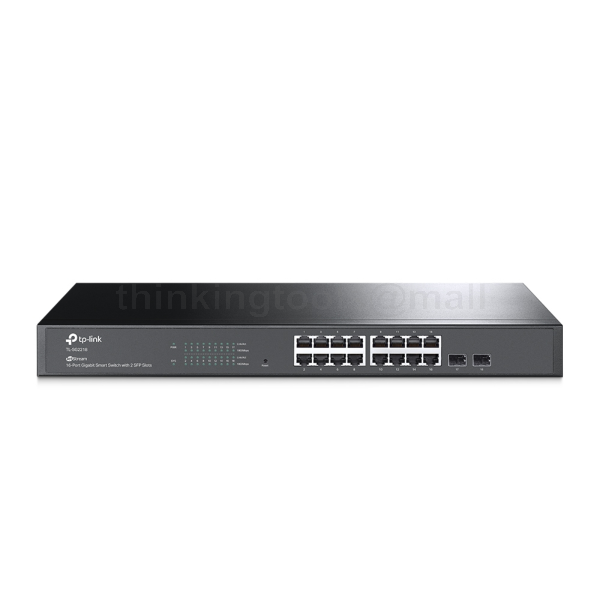

TL-SG2218 Switch
-
Power Cord
-
Quick Installation Guide
-
Rackmount Kit
-
Rubber Feet
-
-
System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, 7/8/10/11; MAC® OS; NetWare®; UNIX® or Linux
-
Environment:
-
Operating Temperature: 0–40°C (32–104°F)
-
Storage Temperature: -40–70°C (-40–158°F)
-
Operating Humidity: 10–90% RH non-condensing
-
Storage Humidity: 5–90% RH non-condensing
-
-
