Specifications:
-
Hardware Features:
-
Standards and Protocols:
-
IEEE 802.3i
-
IEEE 802.3u
-
IEEE 802.3ab
-
IEEE 802.3z
-
IEEE 802.3ad
-
IEEE 802.3x
-
IEEE 802.1d
-
IEEE 802.1s
-
IEEE 802.1w
-
IEEE 802.1q
-
IEEE 802.1x
-
IEEE 802.1p
-
-
Interface:
-
8 × 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
-
2 × 1000 Mbps SFP Slots
-
1 Console Port
-
-
Network Media:
-
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
-
100BASE-TX/1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
-
1000BASE-X: MMF, SMF
-
-
Fan Quantity: Fanless
-
Power Supply: 100–240 VAC, 50/60 Hz
-
Power Consumption: Maximum 10.7W (220V/50Hz)
-
Dimensions (W x D x H): 11.6 × 7.9 × 1.7 in (294 × 200 × 44 mm)
-
-
Performance:
-
Bandwidth/Backplane: 20 Gbps
-
Packet Forwarding Rate: 14.9 Mpps
-
MAC Address Table: 8K
-
Packet Buffer Memory: 4 Mb
-
Jumbo Frame: 10240 Bytes
-
-
Software Features:
-
Quality of Service (QoS):
-
802.1p CoS/DSCP priority
-
4 priority queues
-
Queue Scheduling: SP, WRR, SP+WRR
-
Port/Flow-based Rate Limiting
-
Voice VLAN
-
-
L2 Features:
-
IGMP Snooping V1/V2/V3
-
802.3ad LACP (Up to 8 aggregation groups, 8 ports per group)
-
Spanning Tree Protocol: STP/RSTP/MSTP
-
Port Isolation
-
BPDU Filtering/Guard
-
TC/Root Protect
-
Loopback Detection
-
802.3x Flow Control
-
-
VLAN:
-
Supports up to 4K VLANs (out of 4K VLAN IDs)
-
Port/MAC/Protocol-based VLAN
-
GARP/GVRP
-
Management VLAN Configuration
-
-
Access Control List (ACL):
-
L2–L4 packet filtering based on MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol, and VLAN ID
-
Time Range Based ACL
-
-
Security:
-
IP-MAC-Port-VID Binding
-
IEEE 802.1X Port/MAC Based Authentication, Radius, Guest VLAN
-
DoS Defence
-
Dynamic ARP Inspection (DAI)
-
SSH v1/v2
-
SSL v2/v3/TLS v1
-
Port Security
-
Broadcast/Multicast/Unknown-unicast Storm Control
-
-
IPv6:
-
Dual IPv4/IPv6 stack
-
Multicast Listener Discovery (MLD) Snooping
-
IPv6 Neighbor Discovery (ND)
-
Path Maximum Transmission Unit (MTU) Discovery
-
Internet Control Message Protocol (ICMP) version 6
-
TCPv6/UDPv6
-
-
IPv6 Applications:
-
DHCPv6 Client
-
Ping6
-
Tracert6
-
Telnet (v6)
-
IPv6 SNMP
-
IPv6 SSH
-
IPv6 SSL
-
HTTP/HTTPS
-
IPv6 TFTP
-
-
Management:
-
Web-based GUI and CLI Management
-
SNMP v1/v2c/v3 (public MIBs and TP-LINK private MIBs)
-
RMON (1, 2, 3, 9 groups)
-
DHCP/BOOTP Client
-
DHCP Snooping
-
DHCP Option82
-
CPU Monitoring
-
Port Mirroring
-
Time Setting: SNTP
-
Integrated NDP/NTDP Feature
-
Firmware Upgrade: TFTP & Web
-
System Diagnosis: VCT
-
SYSLOG & Public MIBs
-
-
-
Others:
-
Certification: FCC, RoHS
-
Package Contents:
-

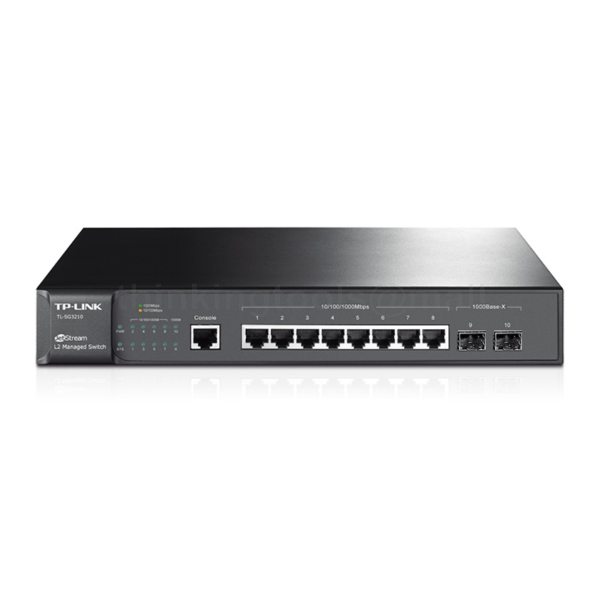

TL-SG3210 Switch
-
Power Cord
-
Quick Installation Guide
-
Resource CD
-
Rackmount Kit
-
Rubber Feet
-
-
System Requirements:
-
Microsoft® Windows® 8, 7, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
-
-
Environment:
-
Operating Temperature: 0–40 ℃ (32–104 ℉)
-
Storage Temperature: -40–70 ℃ (-40–158 ℉)
-
Operating Humidity: 10%–90% RH non-condensing
-
Storage Humidity: 5%–90% RH non-condensing
-
-
