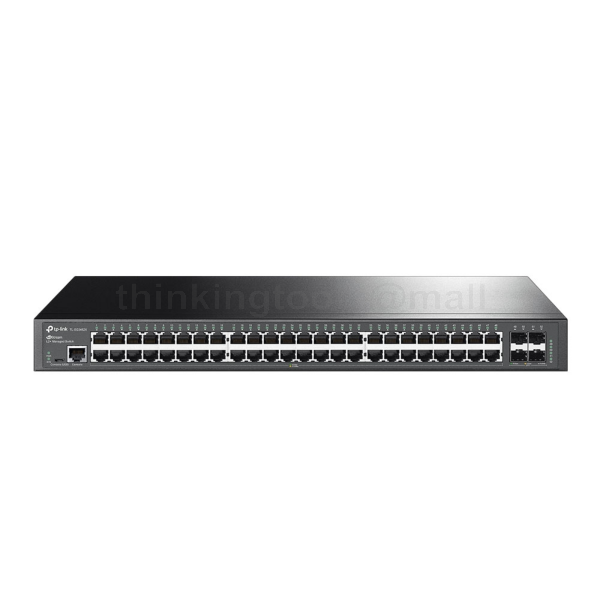

TPLINK SG3452X JETSTREAM 48PORT GIGABIT L2+ MANAGED SWITCH WITH 4 10GE SFP+ SLOTS

Specifications:

• Hardware Features

  • Interface:

    • 48× 10/100/1000 Mbps RJ45 Ports

    • 4× 10G SFP+ Slots

    • 1× RJ45 Console Port

    • 1× Micro-USB Console Port

  • Fan Quantity: Fanless

  • Power Supply: 100-240 V AC~50/60 Hz

  • Dimensions (W x D x H): 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)

  • Mounting: Rack Mountable

  • Max Power Consumption: 32.72 W (110V/60Hz)

  • Max Heat Dissipation: 111.65 BTU/h (110 V/60 Hz)

• Performance

  • Switching Capacity: 176 Gbps

  • Packet Forwarding Rate: 130.9 Mpps

  • MAC Address Table: 16 K

  • Packet Buffer Memory: 12 Mbit

  • Jumbo Frame: 9 KB

• Software Features

  • Quality of Service (QoS):

    • 8 priority queues

    • 802.1p CoS/DSCP priority

    • Queue Scheduling:

      • SP (Strict Priority)

      • WRR (Weighted Round Robin)

      • SP+WRR

    • Bandwidth Control:

      • Port/Flow-based Rate Limiting

    • Action for Flows:

      • Mirror (to supported interface)

      • Redirect (to supported interface)

      • Rate Limit

      • QoS Remark

  • L3 Features:

    • 16 IPv4/IPv6 Interfaces

    • Static Routing:

      • 48 static routes

    • Static ARP:

      • 128 Static Entries

    • Proxy ARP

    • Gratuitous ARP

    • DHCP Server

    • DHCP Relay:

      • DHCP Interface Relay

      • DHCP VLAN Relay

    • DHCP L2 Relay

  • L2 and L2+ Features:

    • Link Aggregation:

      • Static Link Aggregation

      • 802.3ad LACP

      • Up to 8 Aggregation Groups, 8 Ports per Group

    • Spanning Tree Protocol:

      • 802.1d STP

      • 802.1w RSTP

      • 802.1s MSTP

      • STP Security: TC Protect, BPDU Filter, Root Protect

    • Loopback Detection:

      • Port-based

      • VLAN-based

    • Flow Control:

      • 802.3x Flow Control

      • HOL Blocking Prevention

    • Mirroring:

      • Port Mirroring

      • CPU Mirroring

      • One-to-One

      • Many-to-One

      • Tx/Rx/Both

  • L2 Multicast:

    • IGMP Snooping:

      • IGMP v1/v2/v3 Snooping

      • Fast Leave

      • IGMP Snooping Querier

      • IGMP Authentication

    • MLD Snooping:

      • MLD v1/v2 Snooping

      • Fast Leave

      • MLD Snooping Querier

      • Static Group Config

      • Limited IP Multicast

    • MVR

    • Multicast Filtering:

      • 256 profiles

      • 16 entries per profile

  • Advanced Features:

    • Automatic Device Discovery

    • Batch Configuration

    • Batch Firmware Upgrading

    • Intelligent Network Monitoring

    • Abnormal Event Warnings

    • Unified Configuration

    • Reboot Schedule

• VLAN

  • VLAN Group: Max 4K VLAN Groups

  • 802.1Q Tagged VLAN

  • MAC VLAN: 30 Entries

  • Protocol VLAN:

    • Protocol Template 16

    • Protocol VLAN 16

  • Private VLAN

  • GVRP

  • VLAN VPN (QinQ):

    • Port-Based QinQ

    • Selective QinQ

  • Voice VLAN

• Access Control List (ACL)

  • Time-based ACL

  • MAC ACL:

    • Source MAC

    • Destination MAC

    • VLAN ID

    • User Priority

    • Ether Type

  • IP ACL:

    • Source IP

    • Destination IP

    • Fragment

    • IP Protocol

    • TCP Flag

    • TCP/UDP Port

    • DSCP/IP TOS

    • User Priority

  • Combined ACL

  • Packet Content ACL

  • IPv6 ACL

  • Policy:

    • Mirroring

    • Redirect

    • Rate Limit

    • QoS Remark

  • ACL Apply to: Port/VLAN

• Security

  • IP-MAC-Port Binding:

    • 512 Entries

  • DHCP Snooping

  • ARP Inspection

  • IPv4 Source Guard:

    • 100 Entries

  • IPv6-MAC-Port Binding:

    • 512 Entries

  • DHCPv6 Snooping

  • ND Detection

  • IPv6 Source Guard:

    • 100 Entries

  • DoS Defend

  • Static/Dynamic Port Security:

    • Up to 64 MAC Addresses per Port

  • Broadcast/Multicast/Unicast Storm Control:

    • kbps/ratio control mode

  • 802.1X:

    • Port-Based Authentication

    • MAC-Based Authentication

    • VLAN Assignment

    • MAB (MAC Authentication Bypass)

    • Guest VLAN

    • Support Radius Authentication and Accountability

  • AAA (including TACACS+)

  • Port Isolation

  • Secure Web Management:

    • HTTPS with SSLv3/TLS 1.2

  • Secure Command Line Interface (CLI) Management:

    • SSHv1/SSHv2

  • IP/Port/MAC-Based Access Control

• IPv6

  • IPv6 Dual IPv4/IPv6

  • Multicast Listener Discovery (MLD) Snooping

  • IPv6 ACL

  • IPv6 Interface

  • Static IPv6 Routing

  • IPv6 Neighbor Discovery (ND)

  • Path Maximum Transmission Unit (MTU) Discovery

  • Internet Control Message Protocol (ICMP) Version 6

  • TCPv6/UDPv6

  • IPv6 Applications:

    • DHCPv6 Client

    • Ping6

    • Tracert6

    • Telnet (v6)

    • IPv6 SNMP

    • IPv6 SSH

    • IPv6 SSL

    • HTTP/HTTPS

    • IPv6 TFTP

• MIBs

  • MIB II (RFC1213)

  • Interface MIB (RFC2233)

  • Ethernet Interface MIB (RFC1643)

  • Bridge MIB (RFC1493)

  • P/Q-Bridge MIB (RFC2674)

  • RMON MIB (RFC2819)

  • RMON2 MIB (RFC2021)

  • Radius Accounting Client MIB (RFC2620)

  • Radius Authentication Client MIB (RFC2618)

  • Remote Ping, Traceroute MIB (RFC2925)

  • Support TP-Link Private MIB

• Management

  • Omada App: Yes (Requires use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

  • Centralized Management:

    • Omada Cloud-Based Controller

    • Omada Hardware Controller (OC300)

    • Omada Hardware Controller (OC200)

    • Omada Software Controller

  • Cloud Access: Yes (Requires use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

  • Zero-Touch Provisioning: Yes (Requires use of Omada Cloud-Based Controller)

  • Management Features:

    • Web-based GUI

    • Command Line Interface (CLI) through Console Port, Telnet

    • SNMP v1/v2c/v3:

      • Trap/Inform

      • RMON (1, 2, 3, 9 Groups)

    • SDM Template

    • DHCP/BOOTP Client

    • 802.1ab LLDP/LLDP-MED

    • DHCP AutoInstall

    • Dual Image, Dual Configuration

    • CPU Monitoring

    • Cable Diagnostics

    • EEE

    • Password Recovery

    • SNTP

    • System Log

• Others

  • Certification: CE, FCC, RoHS

  • Package Contents:

    • TL-SG3452X Switch

    • Power Cord

    • Quick Installation Guide

    • Rackmount Kit

    • Rubber Feet

  • System Requirements:

    • Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7/8/10/11

    • MAC® OS

    • NetWare®

    • UNIX®

    • Linux

  • Environment:

    • Operating Temperature: 0–45 ℃
