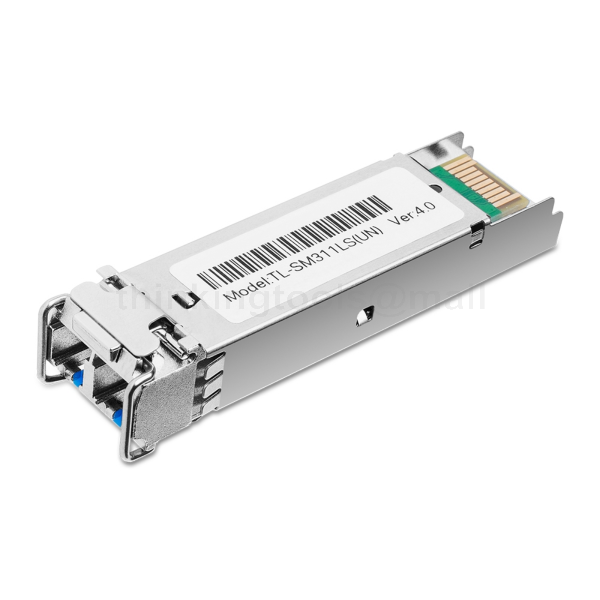

TPLINK SM311LS V5 1000BASE-LX SMF MINI GBIC MODULE
The TL-SM311 series MiniGBIC Fiber Module Cards are designed to extend network transmission distances, supporting up to 20 km with single-mode fiber. Compatible with TP-Link’s SFP ports on JetStream switches and media converters like the MC220L, these modules enable high-performance connectivity over long distances. Ideal for extending LAN connections, they are also compatible with the MC210CS for single-mode fiber applications.
Specifications:
-
Package Contents
-
SFP Module TL-SM311LS
-
Installation Guide
-
-
Hardware Features
-
DDM: Yes
-
SFP-MSA: Yes
-
Hot Swappable: Yes
-
-
Media Converter & Module
-
Standards and Protocols: IEEE 802.3z
-
Wave Length: 1310 nm
-
Dimensions (W x D x H): 2.2 x 0.6 x 0.5 in (55.4 x 14.6 x 12.9 mm)
-
Power Supply: 3.3 V
-
Safety & Emission: FCC, CE
-
Cable: Single-Mode Fiber
-
Fiber Type: 9/125 μm Single-Mode
-
Max. Cable Length: 20 KM
-
Data Rate: 1.25 Gbps
-
Port Type: LC Duplex
-
-
Environment
-
Operating Temperature: 0–70 °C (32–158 °F)
-
Storage Temperature: -40–85 °C (-40–185 °F)
-
Operating Humidity: 10–90% RH, Non-Condensing
-
Storage Humidity: 5–90% RH, Non-Condensing
-
