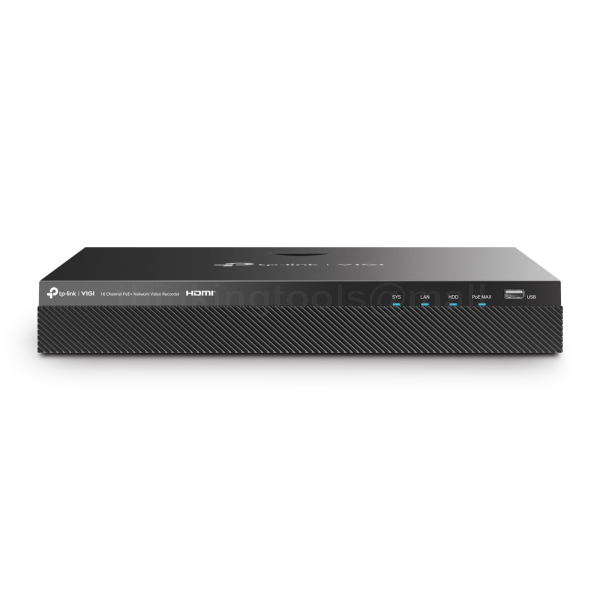

TPLINK VIGI NVR2016H-16P 16 CHANNEL POE+ NETWORK VIDEO RECORDER

0 Review
₱15,890.00
Availability: In stock
SKU:
SUR-TL-NVR-VIGINVR2016H-16P

The VIGI NVR2016H-16P is a powerful 16-channel PoE+ network video recorder that supports 4K HDMI video output and offers impressive 16MP decoding capacity for high-resolution viewing. With a robust 90W PoE budget, it seamlessly powers up to 16 cameras while enabling simultaneous playback from all channels. Designed for easy configuration and remote monitoring, it allows for 24/7 continuous recording with a massive storage capacity of up to 20 TB, ensuring your data is always secure and accessible.

Brands:

Specifications:



  • Video and Audio

    • IP Video Input: 16-Channel

    • Incoming Bandwidth: 80 Mbps

    • Outgoing Bandwidth: 60 Mbps

    • HDMI Output Resolution:

      • 3840x2160/30Hz

      • 1920x1080/60Hz

      • 1680x1050/60Hz

      • 1440x900/60Hz

      • 1280x1024/60Hz

      • 1280x720/60Hz

    • VGA Output Resolution:

      • 1920x1080/60Hz

      • 1680x1050/60Hz

      • 1440x900/60Hz

      • 1280x1024/60Hz

      • 1280x720/60Hz

    • Video Output Mode: HDMI/VGA Simultaneous Output

    • Multi-View Display: 1/4/6/8/9/16

  • Decoding

    • Audio Compression: G.711A/G.711U/G.726

    • Video Compression: H.265+/H.265/H.264+/H.264

    • Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

    • Synchronous Playback: 16-Channel

    • Decoding Capability:

      • 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

      • 30fps: 4-ch @ 3MP, 2-ch @ 5MP

  • Record Management

    • Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording

    • Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback

    • Backup Mode: Regular Backup, Video Clip Backup

    • Playback Functions: Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

  • Network

    • Protocol: UPnP (Plug and Play), NTP (Network Timing)

    • Mobile Phone Access: Android, iOS

    • Web Browser Compatibility: Chrome (57+), Firefox (52+), Edge (91+)

    • Interoperability: ONVIF, CGI

  • External Interface

    • Network Interface: 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface

    • USB Interface:

      • 1 Front USB 2.0 Port

      • 1 Rear USB 2.0 Port

    • Audio Interface: 1 Audio In; 1 Audio Out

    • Power: 1× DC Jack

    • Reset Button: 1

    • HDMI: 1

    • VGA: 1

  • Hard Disk

    • SATA Interfaces: 2 SATA Interfaces

    • Capacity: Up to 10 TB per HDD

  • PoE

    • Standard: 802.3at/af Compliant

    • PoE Budget: 90 W for All PoE+ Ports; 30 W Max per Port

  • Alarm Features

    • General Alarm: Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering/Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame

    • Anomaly Alarm: Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception

    • Alarm Linkage: Recording, White Light Alarm, Buzzer, Log, Audible Alarm

  • General

    • Storage Temperature: -40–70 °C

    • Storage Humidity: 10%~90% RH Non-Condensing

    • Working Temperature: NVR: -10–55 °C; Power Adapter: 0–40 °C

    • Working Humidity: 10%~90% RH Non-Condensing

    • Dimensions (W x D x H): 330 × 285 × 45 mm

    • Net Weight: 1.9 Kg

    • Gross Weight: 3.2 Kg

    • Power Supply: 53.5V DC/2.43A

    • Power Consumption: 6.2 W (Without Disk), 40 W (With Disk)

    • Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
