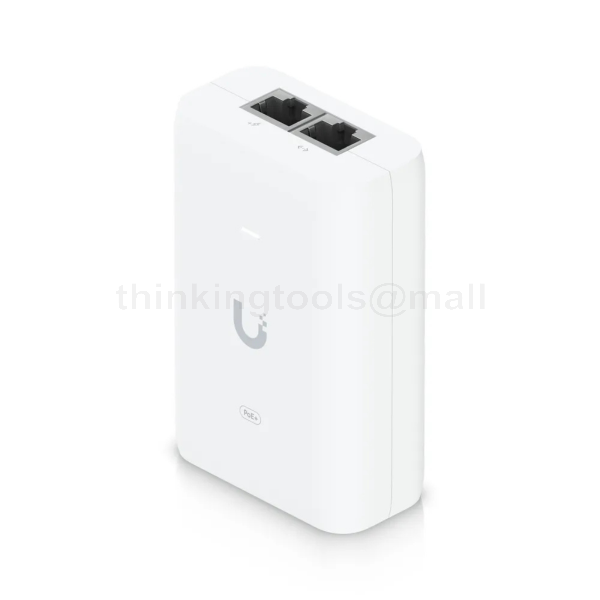

UBIQUITI 802.3AT 30W POE INJECTOR

0 Review
₱1,400.00
Availability: Out of stock
SKU:
NET-UBQ-POE-AT

The adapter is designed to power UniFi PoE+ devices, making it ideal for wireless mesh applications or reducing reliance on PoE switches, delivering up to 30W of power. It supports a variety of devices, including the U6 LR, U6 Enterprise, and DSLR cameras, while ensuring safety with surge, peak pulse, and overcurrent protection. Featuring an RJ45 data input, an AC cable with earth ground, and a PoE+ output, it also includes an LED indicator for easy status monitoring.

Brands:

Specifications:



  • Model: U-POE-at

  • Mechanical Dimensions

    • Size: 93 x 62 x 35 mm (3.66 x 2.44 x 1.38")

    • Weight: 156 g (5.5 oz)

  • Electrical Specifications

    • Output Voltage: 48V DC @ 0.65A

    • Rated Voltage: 100—240V AC @ 50/60Hz

    • Input Current: 0.75A Max.

    • Inrush Current: <100A peak at 26°C

    • Efficiency: 87%

    • Output Ripple: 1% max.

    • Switching Frequency: 70 kHz max.

    • Line Regulation: ≤ 3%

    • Load Regulation: ≤ 5%

  • Powering Options

    • 2-Pair Powering: Pins 4, 5 (+) and 7, 8 (-)

    • 4-Pair Powering: No

  • Connectivity

    • Gigabit LAN Port: Yes

    • Data In / PoE: RJ45 shielded socket

    • AC Connector: IEC-320 C6

  • Protection Features

    • Surge Protection: Difference and common mode

    • Clamping Protection: 11V data, 60V power

    • Max Surge Discharge: 1500A (8/20 μs) power

    • Peak Pulse Current: 36A (10/1000 μs) data

    • Shunt Capacitance: <5 pF data

    • Response Time: <1 ns

  • Environmental Conditions

    • Ambient Operating Temperature: 0 to 40° C (32 to 104° F)

    • Storage Temperature: -30 to 70°C (-22 to 158° F)

    • Ambient Operating Humidity: 10 to 95% non-condensing

  • Certifications

    • CE, FCC, IC, UL
