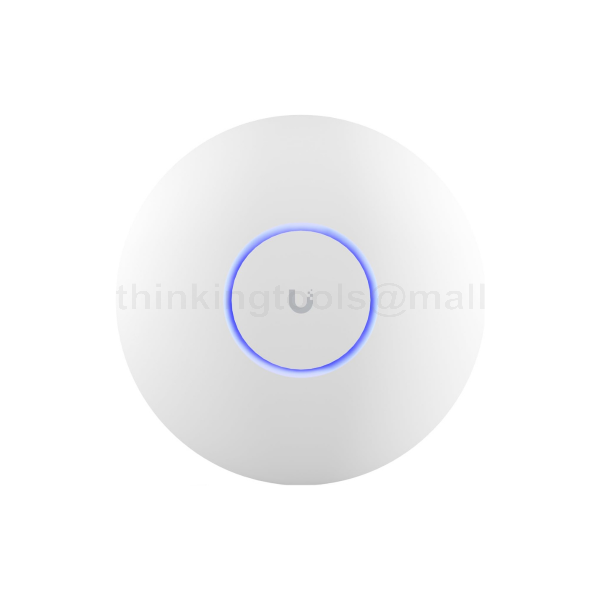

UBIQUITI U6-PRO WIFI 6 ACCESS POINT

0 Review
₱12,900.00
Availability: Out of stock
SKU:
NET-UBQ-AP-U6PRO

The device is a high-performance access point designed for robust wireless connectivity, featuring a sleek polycarbonate enclosure and stainless steel mount, ensuring durability and weather resistance with an IP54 rating. It supports advanced WiFi standards up to 802.11ax (WiFi 6) and offers significant data rates, accommodating over 350 concurrent clients. Power is supplied via PoE, making installation straightforward and efficient in various environments.

Brands:

Specifications:



  • Mechanical

    • Dimensions: Ø197 x 35 mm (Ø7.8 x 1.4")

    • Weight:

      • Without mount: 580 g (1.3 lb)

      • With mount: 720 g (1.6 lb)

    • Enclosure Material: Polycarbonate

    • Mount Material: Stainless steel (SUS304)

    • Weatherproofing: IP54

  • Hardware

    • Networking Interface: (1) GbE RJ45 port

    • Management Interface: Ethernet

    • Bluetooth: Yes

    • Power Method: PoE

    • Power Supply: UniFi PoE switch (PoE adapter not included)

    • Supported Voltage Range: 44—57V DC

    • Max. Power Consumption: 13W

  • Wireless Performance

    • Max. TX Power:

      • 2.4 GHz: 22 dBm

      • 5 GHz: 26 dBm

      • 6 GHz: N/A

    • MIMO:

      • 2.4 GHz: 2 x 2 (UL MU-MIMO)

      • 5 GHz: 4 x 4 (DL/UL MU-MIMO)

      • 6 GHz: N/A

    • Max. Data Rate:

      • 2.4 GHz: 573.5 Mbps (BW40)

      • 5 GHz: 4.8 Gbps (BW160)

      • 6 GHz: N/A

    • Antenna Gain:

      • 2.4 GHz: 4 dBi

      • 5 GHz: 6 dBi

      • 6 GHz: N/A

  • Additional Features

    • LEDs: White/blue

    • Button: Factory reset

    • Mounting Options: Wall, ceiling (included)

    • Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)

    • Ambient Operating Humidity: 5 to 95% noncondensing

    • Certifications: CE, FCC, IC

  • Software

    • WiFi Standards: 802.11a/b/g/n/ac/ax (WiFi 6)

    • Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

    • BSSID: 8 per radio

    • VLAN Support: 802.1Q

    • Advanced QoS: Per-user rate limiting

    • Guest Traffic Isolation: Supported

    • Concurrent Clients: 350+

    • Zero Wait DFS: Yes (supported with upcoming firmware)

  • Supported Data Rates

    • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

    • 802.11b: 1, 2, 5.5, 11 Mbps

    • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

    • 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

    • 802.11ac: 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

    • 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

  • Application Requirements

    • UniFi Network Version: 6.1.56 and later
