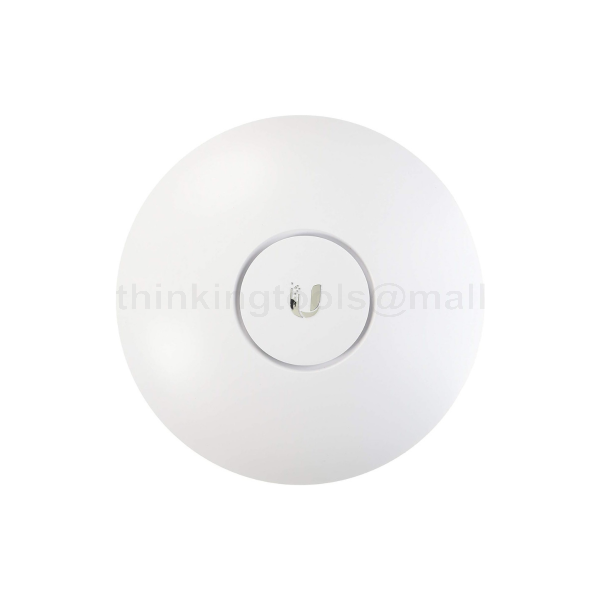

UBIQUITI UNIFI ACCESS POINT AC (LONG RANGE)

0 Review
₱8,490.00
Availability: Out of stock
SKU:
NET-UBQ-AP-UNIFI-ACLR

This access point features a compact design with dimensions of Ø175.7 x 43.2 mm and is lightweight at 240 g without the mount. It supports advanced WiFi standards up to 802.11ac, offering data rates of up to 867 Mbps on the 5 GHz band and accommodating over 250 concurrent clients. Power is provided via passive PoE, making it easy to integrate into various setups while maintaining robust wireless performance in diverse environments.

Brands:

Specifications:



  • Mechanical

    • Dimensions: Ø175.7 x 43.2 mm (Ø6.9 x 1.7")

    • Weight:

      • Without mount: 240 g (8.5 oz)

      • With mount: 315 g (11.1 oz)

  • Hardware

    • Networking Interface: (1) GbE RJ45 port

    • Management Interface: Ethernet

    • Power Method: PoE (Passive PoE, 24V)

      • Pairs 4, 5+; 7, 8 return

    • Power Supply: UniFi PoE switch

      • 24V, 0.5A Gigabit PoE adapter*

        • *5-packs do not come with PoE adapters

    • Max. Power Consumption: 6.5W

  • Wireless Performance

    • Max. TX Power:

      • 2.4 GHz: 24 dBm

      • 5 GHz: 22 dBm

      • 6 GHz: N/A

    • MIMO:

      • 2.4 GHz: 3 x 3 (DL MU-MIMO)

      • 5 GHz: 2 x 2 (DL MU-MIMO)

      • 6 GHz: N/A

    • Max. Data Rate:

      • 2.4 GHz: 450 Mbps (BW40)

      • 5 GHz: 867 Mbps (BW80)

      • 6 GHz: N/A

    • Antenna Gain:

      • 2.4 GHz: 3 dBi

      • 5 GHz: 3 dBi

      • 6 GHz: N/A

  • Additional Features

    • Button: Factory reset

    • Mounting Options: Wall, ceiling (included)

    • Ambient Operating Temperature: -10 to 70° C (14 to 158° F)

    • Ambient Operating Humidity: 5 to 95% noncondensing

    • Certifications: CE, FCC, IC

  • Software

    • WiFi Standards: 802.11 a/b/g/n/r/k/v/ac

    • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

    • BSSID: Up to 8 per radio

    • VLAN Support: 802.1Q

    • Advanced QoS: Per-user rate limiting

    • Guest Traffic Isolation: Supported

    • Power Save: Supported

    • WMM: Voice, video, best effort, and background

    • Concurrent Clients: 250+

  • Supported Data Rates (Mbps)

    • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

    • 802.11b: 1, 2, 5.5, 11 Mbps

    • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

    • 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

    • 802.11ac: 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
