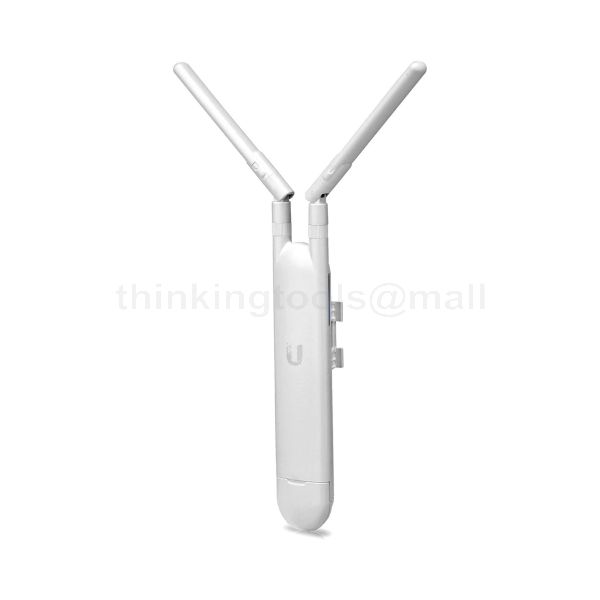

main product photo

UBIQUITI UNIFI ACCESS POINT AC MESH

0 Review
₱7,590.00
Availability: Out of stock
SKU:
NET-UBQ-AP-UNIFI-ACM

The device features compact dimensions of 353 x 46 x 34.4 mm and supports a range of connectivity options, including a GbE RJ45 port and Bluetooth, with power provided via passive PoE. It delivers strong wireless performance with dual-band capabilities (2.4 GHz and 5 GHz), achieving maximum data rates of 300 Mbps and 867 Mbps, respectively. Designed for durability, it operates in extreme temperatures (-30 to 70° C) and supports over 250 concurrent clients, making it ideal for high-demand environments.

Brands:

Specifications:



  • Mechanical Dimensions

    • Size: 353 x 46 x 34.4 mm (13.9 x 1.8 x 1.4")
    • Weight: 152 g (5.4 oz)

  • Hardware

    • Networking Interface: (1) GbE RJ45 port
    • Management Interface: Ethernet
    • Bluetooth: Yes
    • Power Method: PoE (Passive PoE, 24V)
      • Pinouts: Pairs 4, 5+; 7, 8 return
    • Power Supply: Gigabit PoE adapter 24V, 0.5A (not included in 5-packs)
    • Supported Voltage Range: 44—57V DC
    • Max Power Consumption: 8.5W

  • Wireless Performance

    • Max TX Power:
      • 2.4 GHz: 20 dBm
      • 5 GHz: 20 dBm
      • 6 GHz: Not applicable
    • MIMO:
      • 2.4 GHz: 2 x 2 (DL MU-MIMO)
      • 5 GHz: 2 x 2 (DL MU-MIMO)
      • 6 GHz: Not applicable
    • Max Data Rate:
      • 2.4 GHz: 300 Mbps (BW40)
      • 5 GHz: 867 Mbps (BW80)
      • 6 GHz: Not applicable
    • Antenna Gain:
      • 2.4 GHz: 3 dBi
      • 5 GHz: 4 dBi
      • 6 GHz: Not applicable

  • Physical Features

    • Button: Factory reset
    • Mounting Options: Wall, pole, fast-mount (included)
    • Operating Temperature: -30 to 70° C (-22 to 158° F)
    • Operating Humidity: 5 to 95% non-condensing
    • Certifications: CE, FCC, IC, UKCA

  • Software

    • WiFi Standards: 802.11a/b/g/n/ac
    • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
    • VLAN Support: 802.1Q
    • BSSID: Up to 4 per radio
    • Advanced QoS: Per-user rate limiting
    • Guest Traffic Isolation: Supported
    • Power Save: Supported
    • WMM: Voice, video, best effort, and background
    • Concurrent Clients: 250+

  • Supported Data Rates (Mbps)

    • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11b: 1, 2, 5.5, 11 Mbps
    • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    • 802.11ac: 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40
