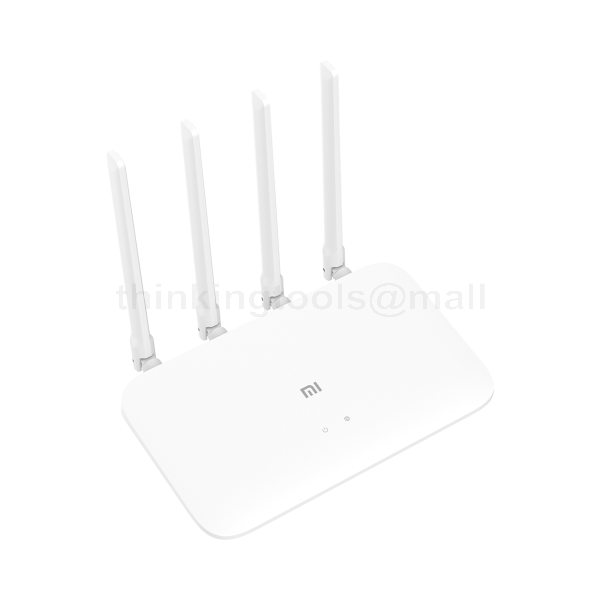

main product photo

XIAOMI MI ROUTER 4A GIGABIT EDITION AC1200 ROUTER

0 Review
₱1,499.00
Availability: In stock
SKU:
NET-XMI-ROUTER-R4A

The Mi Router 4A Gigabit Edition is a dual-core AC1200 router equipped with gigabit WAN and LAN ports, providing high-speed broadband over 100 Mbps for optimal performance. With dual-band capabilities, it offers combined wireless speeds of up to 1167 Mbps, ensuring smooth connections for activities like HD streaming and online gaming without interference. Its dual-band integration simplifies connectivity by using a single Wi-Fi name, automatically selecting the best frequency for your devices, while also featuring enhanced security and child safety features.

Brands:

Specifications:



Hardware Configuration

  • Product Color: White

  • Processor: MT7621A MIPS Dual Core, 880 MHz

  • Product Memory: 128 MB

  • 2.4G Wi-Fi:

    • Configuration: 2×2

    • Protocol: Supports IEEE 802.11n

    • Maximum Speed: Up to 300 Mbps

  • 5G Wi-Fi:

    • Configuration: 2×2

    • Protocol: Supports IEEE 802.11ac

    • Maximum Speed: Up to 867 Mbps

  • Antennas:

    • 4 external omni-directional high-gain antennas

    • 2× 2.4G antennas (maximum gain of 5 dBi)

    • 2× 5G antennas (maximum gain of 6 dBi)

  • Cooling: Passive cooling

  • Product Ports:

    • 2× 10/100/1000 Mbps adaptive WAN ports (Auto MDI/MDIX)

    • 1× 10/100/1000 Mbps adaptive LAN port (Auto MDI/MDIX)

  • LED Indicators: 2

  • Protocol Standards:

    • IEEE 802.11a/b/g/n/ac

    • IEEE 802.3/3u/3ab

  • System Reset Button: 1

  • Power Supply Port: 1

Wireless Specifications

  • Dual Band: 2.4GHz and 5GHz

  • Modulation:

    • 11b: DSSS: DBPSK (1 Mbps), DQPSK (2 Mbps), CCK (5.5/11 Mbps)

    • 11a/g: OFDM: BPSK (6/9 Mbps), QPSK (12/18 Mbps), 16QAM (24/36 Mbps), 64QAM (48/54 Mbps)

    • 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0-MCS15

    • 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0-MCS9 (supports 2 streams)

    • 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM. Rate set: MCS0-MCS11 (supports 2 streams)

Software Parameters

  • Operating System: OpenWRT, widely customizable intelligent router operating system; MiWiFi ROM

  • Wireless Security: WPA-PSK/WPA2-PSK encryption, wireless access control (black and white lists), SSID hiding, smart anti-hacking protection

  • Management Applications: Web support, Android, iOS
