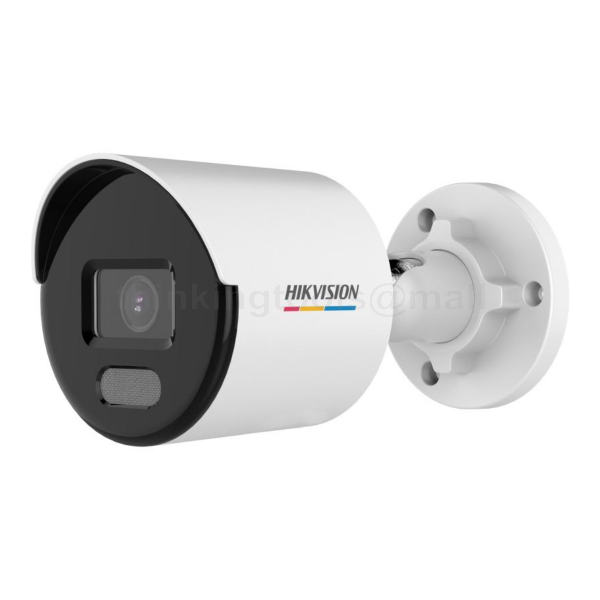

HIKVISION DS-2CD1027G2-L(2.8) 2MP COLORVU 30M-IR IP67 FIXED BULLET NETWORK CAMERA

Specifications:

Image Sensor

• Type: 1/2.8" Progressive Scan CMOS

Resolution

• Maximum Resolution: 1920 × 1080 (Full HD)

Illumination

• Min. Illumination (Color): 0.001 Lux @ (F1.0, AGC ON)

Shutter Time

• Range: 1/3 s to 1/100,000 s

Angle Adjustment

• Pan: 0° to 360°

• Tilt: 0° to 90°

• Rotate: 0° to 360°

Lens

• Focal Length & Field of View (FOV):

  • 2.8mm: Horizontal FOV 107°, Vertical FOV 56°, Diagonal FOV 127°

  • 4mm: Horizontal FOV 84°, Vertical FOV 45°, Diagonal FOV 99°

• Lens Mount: M12

• Iris Type: Fixed

• Aperture: F1.0

• Depth of Field:

  • 2.8 mm Lens: 1.7 m to ∞

  • 4 mm Lens: 2.1 m to ∞

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional

Illuminator

• Supplement Light Type: White Light

• Supplement Light Range: Up to 30 m

• Smart Supplement Light: Yes

Video

• Main Stream Frame Rates:

  • 50 Hz: 25fps at 1920 × 1080, 1280 × 960, 1280 × 720

  • 60 Hz: 30fps at 1920 × 1080, 1280 × 960, 1280 × 720

• Sub-Stream Frame Rates:

  • 50 Hz: 25fps at 640 × 480, 640 × 360, 320 × 240

  • 60 Hz: 30fps at 640 × 480, 640 × 360, 320 × 240

• Video Compression:

  • Main stream: H.265+/H.265/H.264+/H.264

  • Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 8 Mbps

• H.264 Type: Baseline Profile/Main Profile/High Profile

• H.265 Type: Main Profile

• Region of Interest (ROI): 1 fixed region for mainstream

Network

• Protocols: TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS

• Simultaneous Live View: Up to 6 channels

• API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

• User/Host: Up to 32 users. 3 user levels: administrator, operator, and user

• Security: Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF

• Client Software: iVMS-4200, Hik-Connect, Hik-Central

• Web Browser Compatibility:

  • Plug-in required for live view: IE8, IE9, IE10, IE11

  • Local service: Chrome 57.0+, Firefox 52.0+


• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

• Day/Night Switch: Day, Night, Auto, Schedule

• Wide Dynamic Range (WDR): Digital WDR

• Image Enhancement: BLC (Back Light Compensation), HLC (High Light Compensation), 3D DNR (Digital Noise Reduction)

Interface

• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Basic Events: Motion detection, exception (illegal login)

• Linkage Actions: Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture

General

• Power:

  • 12 VDC ± 25%, 0.30 A, max. 3.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection

  • PoE: 802.3af, Type 1 Class 3, 36 V to 57 V, 0.20 A to 0.10 A, max. 4.5W

• Dimensions: 68.4 × 65.2 × 161.1 mm (2.7" × 2.6" × 6.3")

• Package Dimensions: 172 × 104 × 80 mm (6.8" × 4.1" × 3.1")

• Weight: Approx. 420 g (0.9 lb.)

• With Package Weight: Approx. 510 g (1.1 lb.)

• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Language: English

• General Functions: Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
