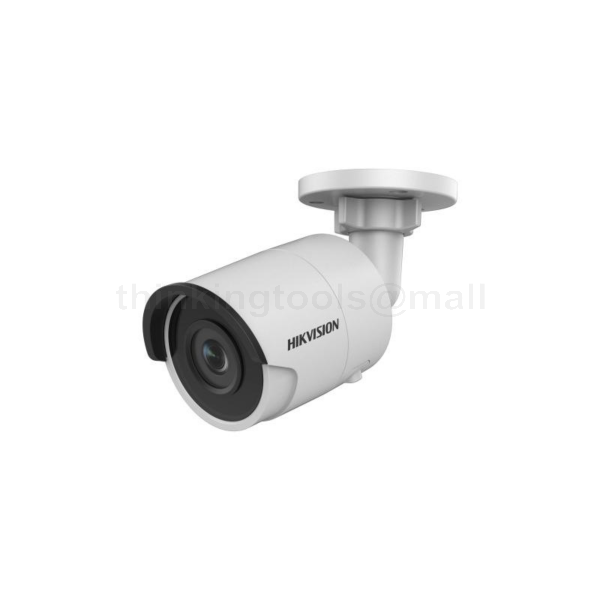

HIKVISION DS-2CD2043G0-I 4MP WDR 30M-IR IP67 EXIR FIXED BULLET NETWORK CAMERA

0 Review
₱4,300.00
Availability: Out of stock
SKU:
SUR-HIK-CAM-DS2CD2043G0I

The 4 MP Outdoor WDR Fixed Bullet Network Camera delivers high-quality imaging with a 4 MP resolution and utilizes efficient H.265+ compression technology for optimal performance. Equipped with 120 dB true WDR technology, it ensures clear images even in strong backlight conditions. Its robust, all-metal design and IP67 rating provide excellent water and dust resistance, making it ideal for outdoor use.

Brands:

Specifications:



  • Camera

    • Image Sensor: 1/3" Progressive Scan CMOS

    • Min. Illumination:

      • Color: 0.01 Lux @ (F1.2, AGC ON)

      • 0.018 Lux @ (F1.6, AGC ON)

      • 0 Lux with IR

    • Shutter Speed: 1/3 s to 1/100,000 s

    • Slow Shutter: Yes

    • Wide Dynamic Range: 120dB

    • Day & Night: IR Cut Filter

    • Angle Adjustment:

      • Pan: 0° to 360°

      • Tilt: 0° to 90°

      • Rotate: 0° to 360°

  • Lens

    • Focus: Fixed

    • Lens Type: 2.8/4/6/8 mm

    • Field of View (FOV):

      • 2.8 mm: Horizontal 103°, Vertical 58°, Diagonal 123°

      • 4 mm: Horizontal 83°, Vertical 45°, Diagonal 99°

      • 6 mm: Horizontal 51°, Vertical 29°, Diagonal 58°

      • 8 mm: Horizontal 39°, Vertical 22°, Diagonal 45°

    • Aperture: F1.6

    • Lens Mount: M12

    • Aperture Type: Fixed

    • Illuminator:

      • IR Range: Up to 30 m

      • Wavelength: 850nm

  • Video

    • Max. Resolution: 2688 × 1520

    • Main Stream:

      • 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

      • 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

    • Sub Stream:

      • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

      • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

    • Third Stream:

      • 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

      • 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

    • Video Compression:

      • Main stream: H.265/H.264

      • Sub-stream: H.265/H.264/MJPEG

      • Third stream: H.265/H.264

    • Video Bit Rate: 32 Kbps to 16 Mbps

    • H.264 Type: Main Profile/High Profile

    • H.265 Type: Main Profile

    • H.264+: Supported on main stream

    • H.265+: Supported on main stream

  • Network

    • Simultaneous Live View: Up to 6 channels

    • API: ONVIF (PROFILE S, G, T), ISAPI, SDK, Ehome

    • Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket

    • User/Host: Up to 32 users (3 levels: Administrator, Operator, User)

    • Security: Password protection, HTTPS encryption, 802.1X authentication, watermark, IP address filter

  • Storage

    • Network Storage: Supports Micro SD/SDHC/SDXC card (up to 128 GB), local storage, and NAS (NFS, SMB/CIFS)

    • On-board Storage: Built-in Micro SD/SDHC/SDXC slot (up to 128 GB)

  • General

    • Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

    • Day/Night Switch: Day/Night/Auto/Schedule

    • Image Settings: Adjustable via client software or web browser (saturation, brightness, contrast, sharpness, AGC, white balance)

    • Linkage Method: Trigger recording to memory card, network storage; trigger notifications via HTTP, ISAPI, Email

  • Physical

      • Startup and Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

      • Power Supply: 12 VDC ± 25%, PoE (802.3af, class 3)

      • Power Consumption:

        • 12 VDC: 0.5 A, max. 6 W

        • PoE: 36 V to 57 V, 0.2 A to 0.1 A, max. 7.5 W

      • Camera Dimension:

        • Camera: Φ 70 × 155.03 mm (Φ 2.8" × 6.1")

        • Package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.7")

      • Camera Weight:

        • Camera: Approx. 420 g (0.9 lb.)

        • With Package: Approx. 700 g (1.5 lb.)

      • Protection Rating: IP67
