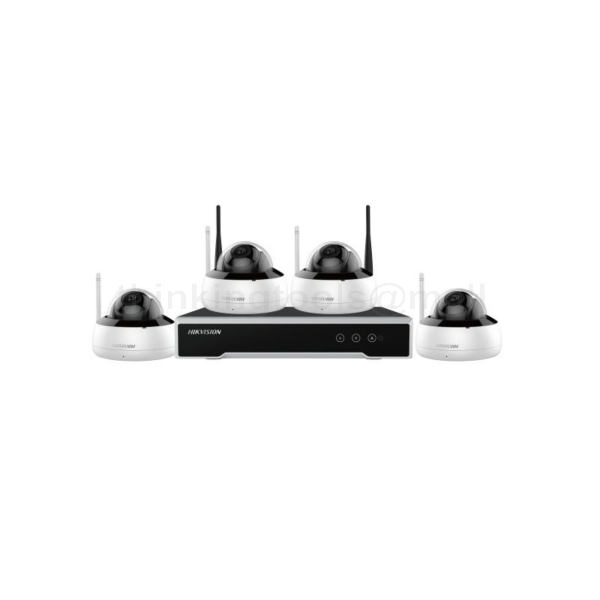

HIKVISION NK44W1H-1T 4CH NVR W/ 1TB WDPURX, 4 X DOME 4MP WIFI CAMERA

Camera Specifications:

• Camera Case Type: Dome

• Image Sensor: 1/3" Progressive Scan CMOS

• Min. Illumination: 0.028 Lux

• Shutter Speed: 1/3 s to 1/100,000 s

• Day & Night: IR cut filter

• WDR: Yes (DWDR)

• Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°

• Protection Level: IP66

• Material: Plastic

• Wi-Fi Support: Yes

Camera Lens

• Focal Length: 2.8 mm

• Aperture: F2.0

• Focus: Fixed

• Field of View: Horizontal FOV: 100°, Vertical FOV: 55°, Diagonal FOV: 117°

• Lens Mount: M12

• IR Range: Up to 30 m

Video Compression

• Video Compression Standards: H.265+, H.265, H.264+, H.264, MJPEG

• H.264 Type: Baseline Profile/Main Profile/High Profile

• H.265 Type: Main Profile

• Video Bit Rate: 32 Kbps to 8 Mbps

Audio Specifications

• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM

• Audio Bit Rate: 64 Kbps (G.711), 16 Kbps (G.722.1), 16 Kbps (G.726), 32-192 Kbps (MP2L2)

• Audio Sampling Rate: 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz

• Environment Noise Filtering: Yes

Camera Image

• Max Resolution: 4 MP

• Main Stream: 50 Hz: 20 fps (2560 × 1440), 25 fps (2304 × 1296, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (2560 × 1440), 30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

• Sub-stream: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240); 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

• Image Settings: Adjustable saturation, brightness, contrast, sharpness via client software/browser

• Day/Night Switch: Auto/Scheduled/Day/Night

Network Features

• Alarm Triggers: Motion detection, video tampering, network disconnection, IP conflict, illegal login, HDD error, HDD full

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour

• General Functions: One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

• Client Software: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

• On-board Storage: 128 GB

• Audio I/O: 1 Built-in mic

• Reset Button: Yes

General Specifications

• Power Supply: 12 VDC ± 25%, 0.5 A, Φ 5.5 mm coaxial plug

• Power Consumption: ≤ 6 W

• Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)

• Working Humidity: 95% or less (non-condensing)

• Dimensions: Φ 121.4 mm × 92.2 mm (Φ 4.8" × 3.6")

• Weight: 467 g (1 lb)

NVR Specifications

• IP Video Input: 4-ch

• Incoming/Outgoing Bandwidth: 50 Mbps/40 Mbps

• HDMI/VGA Output: 1-ch, resolutions: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

• Audio Output: 1-ch, RCA (linear, 1 KΩ)

• Decoding Capability: 2-ch @ 1080p / 1-ch @ 4 MP

NVR Network Features

• Network Interface: 1 RJ45 10/100M Ethernet

• Network Protocols: IPv6, UPnP™, NTP, SADP, DHCP

• Remote Connections: Up to 16

NVR Wi-Fi Specifications

• Frequency Band: 2.4 GHz

• Antenna Structure: 2 × 2MIMO

• Transmission Speed: 144 Mbps

• Transmission Standard: IEEE 802.11b/g/n

NVR General Specifications

• Power Supply: 12 VDC

• Power Consumption: ≤ 12 W (without HDD and PoE off)

• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity: 10% to 90%

• Dimensions: 260 mm × 246 mm × 48 mm (10.2" × 9.7" × 1.9")

• Weight (without hard disk): ≤ 1 kg (2.2 lb)

Kit Accessories

• Power Cables: 4 × IPC power cables, 1 × NVR power cable

• Ethernet Cable: RJ45, Cat5e UTP, 1 m

• HDMI Cable: 1 × HDMI cable, 2 m, black

• Hard Drive: Pre-installed 1 TB HDD

Certification

• Certifications: FCC, CE

• Weight (with package): ≤ 7 kg (15.4 lb)
