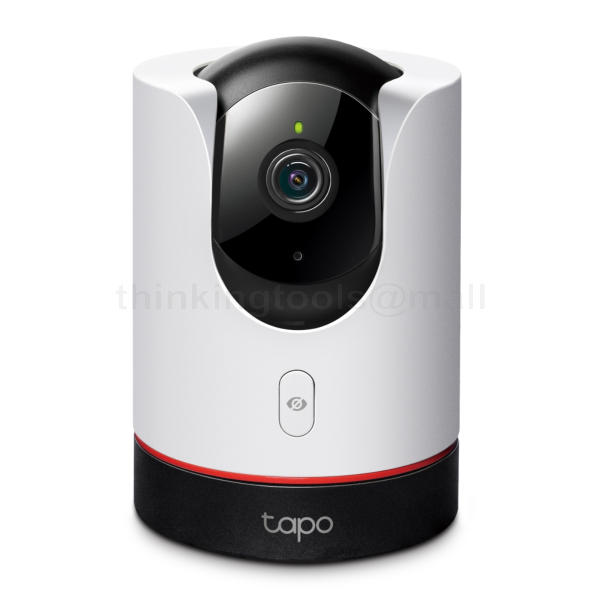

TPLINK TAPO C225 2K QHD PAN/TILT AI HOME SECURITY WIFI CAMERA

Specifications:

• Camera Specifications

  • Image Sensor: 1/2.9“

  • Lens:

    • F/NO: 1.6±5%

    • Focal Length: 4mm±5%

  • Motion Range:

    • Pan Mechanical Range: 360° Pan Coverage

    • Tilt Mechanical Range: 149° Tilt Coverage

  • Night Vision:

    • 850nm IR LED

    • 940nm IR LED

  • Interface & Button:

    • 1× RESET Button

    • 1× Privacy Button

    • 1× MicroSD Card Slot (Up to 512 GB)

  • View Range: 360° Horizontal, 149° Vertical

  • Resolution: 2K QHD 4MP (2688×1520 px)

• Video & Audio Specifications

  • Maximum Resolution: 2K QHD 4MP (2688 × 1520 px)

  • Frame Rate: 15/20/25/30 fps (Default 15fps)

  • Digital Zoom: None

  • Video Compression: H.264

  • Live View: Yes

  • Image Enhancement: 3D DNR, WDR, HDR

  • Audio Input & Output: Built-in Microphone and Speaker

  • Audio Communication: Two-Way Audio with Noise Cancellation

  • Siren Volume: 98dB (Level measured at 4-inch/10-cm distance)

• Storage

  • Local Storage: MicroSD Card Slot on Camera (Up to 512 GB)

  • Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)

• Video Streaming

  • Frame Rate: 2688×1520@30fps

  • Video Streaming: 2688×1520

  • Audio Compression: G.711

• Detection and Notifications

  • AI Detection:

    • Motion Detection

    • Person Detection

    • Line-Crossing Detection

    • Tamper Detection

    • Baby Cry Detection

    • Vehicle Detection

    • Pet Detection

    • Meow Detection

    • Bark Detection

    • Glass-Breaking Detection

  • Activity Zones: Yes (only works with Motion Detection)

  • Output Notification: System Notification with Snapshot (Tapo Care Services)

• Network Specifications

  • Network Connectivity: Connect via Wi-Fi

  • Wireless Connectivity: IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi

  • Protocol: TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP, ONVIF

  • Wireless Security: WPA/WPA2-PSK

  • RTSP: Yes

  • ONVIF: Yes

  • Security: 128-bit AES Encryption with SSL/TLS

  • Frequency: 2.4 GHz

• Security

  • On-Device Machine Learning: Yes

  • Encryption: 128-bit AES Encryption with SSL/TLS

  • Wireless Security Protocols: WPA/WPA2-PSK/WPA3

• Power Specifications

  • Power Source: 12V DC Power Adapter

  • Input Voltage: 100-240 V, 50/60 Hz

  • Output Voltage: 12 V, 1.0 A (DC Power)

• General Specifications

  • Smart Integration: Google Assistant, Amazon Alexa, Apple HomeKit

  • Mounting Options: Tabletop, Ceiling-Mounted

  • Operating Temperature: 0℃~40℃

  • Storage Temperature: -20℃~70℃

  • Operating Humidity: 10%~90% RH, Non-condensing

  • Storage Humidity: 5%~90% RH, Non-condensing

  • Dimensions: 3.15 × 3.15 × 4.41 in (80 × 80 × 112 mm)

• Package Contents

  • Tapo C225 Camera

  • DC Power Adapter

  • Quick Start Guide

  • Mounting Screws

  • Mounting Template

  • Camera Base

• Certifications

  • CE, FCC, NCC, BSMI, IC, VCCI, JRF, KC, RCM, NTRA, Homekit, WEEE, EAC, RoHS

• Activity Notifications

  • Input Trigger:

    • Motion Detection

    • Person Detection

    • Line-Crossing Detection

    • Camera Tampering

    • Baby Crying Detection

    • Vehicle Detection

    • Pet Detection

    • Cat Meows Detection

    • Dog Bark Detection

    • Glass Break Detection

  • Output Notification: Notification, Snapshot (Tapo Care)

• Environment Specifications

  • Operating Temperature: 0℃~40℃

  • Storage Temperature: -20℃~70℃

  • Operating Humidity: 10%~90% RH, Non-condensing

  • Storage Humidity: 5%~90% RH, Non-condensing
