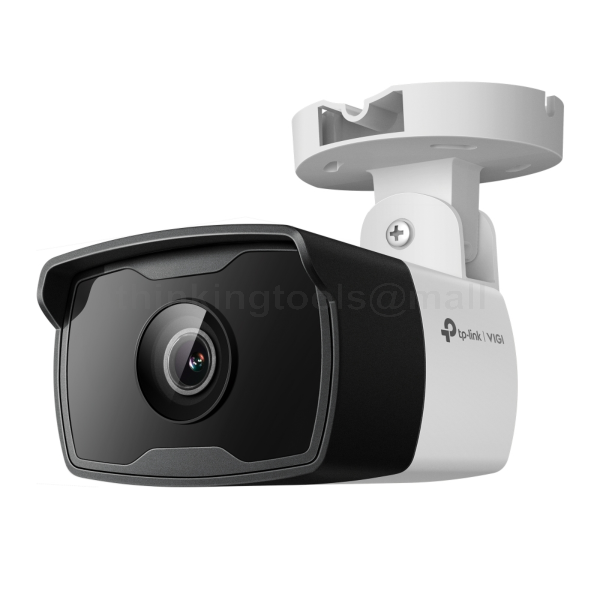

TPLINK VIGI C320I-2.8 2MP OUTDOOR IR BULLET NETWORK CAMERA

0 Review
₱1,590.00
Availability: Out of stock
SKU:
SUR-TL-CAM-VIGIC320I-2.8

The VIGI C320I camera offers 2MP Full-High Definition imaging, ensuring clear detail capture while utilizing advanced human and vehicle classification for accurate event notifications. Its smart detection features alert users to specific activities like boundary crossings or object removal, combined with video enhancement technologies such as Smart IR and WDR for optimal performance. Designed for outdoor use with an IP67 rating, it supports simplified PoE deployment and offers flexible management through multiple interfaces, catering to diverse security needs.

Brands:

Specifications:



  • Camera Specifications

    • Image Sensor: 1/3” Progressive Scan CMOS

    • Shutter Speed: 1/3 to 1/10000 s

    • Slow Shutter: Yes

    • Aperture:

      • 2.8 mm: F2.2

      • 4 mm: F2.0

      • 6 mm: F2.0

    • Lens: 2.8 mm / 4 mm / 6 mm

    • Lens Mount: M12

    • Minimum Illumination:

      • Color: 0.1 Lux

      • 0 Lux with IR

    • Day/Night Mechanism: IR Cut Filter

    • Day/Night Switch: Day/Night/Auto/Schedule

    • Digital Noise Reduction: 3D DNR

    • Wide Dynamic Range: DWDR

    • Weatherproof Rating: IP67

    • IR Working Distance: 30 m

    • Viewing Angle:

      • 2.8 mm:

        • Horizontal: 88.2°

        • Vertical: 48.7°

        • Diagonal: 106.5°

      • 4 mm:

        • Horizontal: 74.6°

        • Vertical: 41.3°

        • Diagonal: 88.1°

      • 6 mm:

        • Horizontal: 47.7°

        • Vertical: 26.5°

        • Diagonal: 56°



  • Lens Specifications

    • Type: Fixed Focal Lens

    • Focal Length: 2.8 mm / 4 mm / 6 mm

    • Aperture:

      • 2.8 mm: F2.2

      • 4 mm: F2.0

      • 6 mm: F2.0

    • Field of View (FOV):

      • 2.8 mm:

        • Horizontal: 88.2°

        • Vertical: 48.6°

        • Diagonal: 106.5°

      • 4 mm:

        • Horizontal: 74.6°

        • Vertical: 41.3°

        • Diagonal: 88.1°

      • 6 mm:

        • Horizontal: 47.7°

        • Vertical: 26.5°

        • Diagonal: 56°

    • DORI Distance:

      • 2.8 mm:

        • Detect: 45 m

        • Observe: 19 m

        • Recognize: 9 m

        • Identify: 5 m

      • 4 mm:

        • Detect: 60 m

        • Observe: 25 m

        • Recognize: 12 m

        • Identify: 6 m

      • 6 mm:

        • Detect: 91 m

        • Observe: 38 m

        • Recognize: 18 m

        • Identify: 9 m

    • Angle Adjustment (Manual):

      • Pan: -90° to 90°

      • Tilt: -90° to 90°



  • Illuminator

    • IR LED:

      • Quantity: 2

      • Range: 30 m

      • Wavelength: 850 nm

    • White LED: N/A

    • Illuminator On/Off Control: Auto/Scheduled/Always on/Always off





  • Video Specifications

    • Max. Resolution: 1920 × 1080

    • Main Stream Frame Rate:

      • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

      • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

    • Main Stream Resolutions: 1920x1080, 1280x960, 1280x720

    • Sub-Stream Frame Rate:

      • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

      • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

    • Sub-Stream Resolutions: 704x576, 640x480, 352x288, 320x240

    • Bit Rate Control: CBR, VBR

    • Video Compression:

      • Main Stream: H.265+/H.265/H.264+/H.264

      • Sub-Stream: H.265/H.264

    • Video Bit Rate:

      • Main Stream: 256 Kbps to 4 Mbps

      • Sub-Stream: 64 Kbps to 512 Kbps





  • Image Settings

    • Image Settings:

      • Mirror

      • Brightness

      • Contrast

      • Saturation

      • Sharpness

      • Exposure

      • WDR

      • White Balance (adjustable by client software)

    • Image Enhancement: BLC/3D DNR/HLC/SmartIR

    • Wide Dynamic Range: DWDR

    • SNR: ≥ 52 dB

    • Privacy Mask: Up to 4 Masks

    • Region of Interest (ROI): 1 Region

    • OSD Setting: Yes





  • Audio

    • Audio Communication: N/A

    • Audio Input: N/A

    • Audio Output: N/A



  • Network Specifications

    • Protocols:

      • TCP/IP

      • UDP

      • ICMP

      • HTTP

      • HTTPS

      • DHCP

      • DNS

      • RTSP

      • NTP

      • UPnP

      • SSL/TLS

    • ONVIF: Yes

    • API: ONVIF

    • Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

    • Client: VIGI App, VIGI Security Manager, VIGI NVR

    • Web Browser Compatibility:

      • Google Chrome® 57 and above

      • Firefox® 52 and above

      • Safari® 11 and above

      • Microsoft® Edge 91 and above

    • Cloud Support: Yes

    • Security Features:

      • Password Protection

      • HTTPS Encryption

      • IP Address Filter

      • Digest Authentication

    • Network Storage: NAS (NFS, SMB/CIFS)





  • Alarm and Event Management

    • Smart Event Detection:

      • Human & Vehicle Classification

      • Area Intrusion Detection

      • Line-Crossing Detection

      • Object Abandonment/Removal Detection

    • Basic Events:

      • Motion Detection

      • Video Tampering Detection

      • Exception (Illegal Login)

    • Alarm Linkage: Message Push





  • Interfaces

    • Network Interface: 1 RJ45 10/100M self-adaptive Ethernet port

    • Power Supply: PoE (802.3af/at, class 0)

    • Dimensions (H x W x D): 174 × 74 × 71 mm

    • Material: Plastic

    • Weight:

      • Net: 0.2 Kg

      • Gross: 0.35 Kg

    • Operating Temperature: -30 to 60 °C

    • Storage Temperature: -40 to 60 °C

    • Operating Humidity: 95% or less (non-condensing)

    • Storage Humidity: 95% or less (non-condensing)

    • Waterproof Rating: IP67

    • Certifications: CE/BSMI/VCCI/ONVIF





  • General Features

    • Power Consumption: PoE: Class 0

    • Additional Features:

      • Two Streams

      • Mirror

      • Privacy Masks

      • Password Reset via E-mail

      • HTTP Listening
