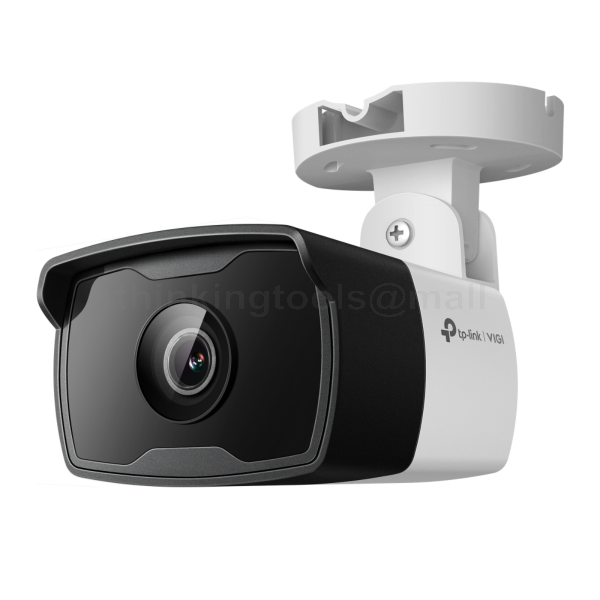

TPLINK VIGI C330I-2.8 3MP OUTDOOR IR BULLET NETWORK CAMERA

Specifications:

• Camera

  • Image Sensor: 1/2.8” Progressive Scan CMOS

  • Shutter Speed: 1/3 to 1/10000 s

  • Slow Shutter: Yes

  • Minimum Illumination:

    • Color: 0.01 Lux

    • 0 Lux with IR light

  • Day/Night Mechanism: IR Cut Filter

  • Day/Night Switch: Unified/Scheduled/Auto

• Lens

  • Type: Fixed Focal Lens

  • Focal Length: 2.8 mm / 4 mm / 6 mm

  • Aperture:

    • 2.8mm: F2.2

    • 4mm: F2.0

    • 6mm: F2.0

  • FOV:

    • 2.8 mm: Horizontal 97.8°, Vertical 52.9°, Diagonal 117.9°

    • 4 mm: Horizontal 82.5°, Vertical 44.9°, Diagonal 99.3°

    • 6 mm: Horizontal 51.9°, Vertical 28.7°, Diagonal 60°

  • Lens Mount: M12

  • DORI Distance:

    • 2.8 mm:

      • Detect: 49 m (161 ft)

      • Observe: 20 m (67 ft)

      • Recognize: 10 m (32 ft)

      • Identify: 5 m (16 ft)

    • 4 mm:

      • Detect: 65 m (214 ft)

      • Observe: 27 m (89 ft)

      • Recognize: 13 m (43 ft)

      • Identify: 7 m (21 ft)

    • 6 mm:

      • Detect: 98 m (321 ft)

      • Observe: 41 m (134 ft)

      • Recognize: 20 m (64 ft)

      • Identify: 10 m (32 ft)

  • Angle Adjustment (Manual):

    • Pan: -90° to 90°

    • Tilt: -90° to 90°

• Illuminator

  • IR LED: Quantity: 2

  • Range: 30m

  • Wavelength: 850nm

  • White LED: N/A

  • Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

• Video

  • Max. Resolution: 2304 × 1296

  • Main Stream:

    • Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

    • Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

  • Sub-Stream:

    • Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

    • Resolution: 704x576, 640x480, 352x288, 320x240

  • Bit Rate Control: CBR, VBR

  • Video Compression:

    • Main Stream: H.265+/H.265/H.264+/H.264

    • Sub-Stream: H.265/H.264

  • H.264 Type: Main Profile/High Profile

  • H.264+: Main Stream Supported

  • H.265 Type: Main Profile

  • H.265+: Main Stream Supported

  • Video Bit Rate:

    • Main Stream: 256 Kbps to 4 Mbps

    • Sub-Stream: 64 Kbps to 512 Kbps

  • Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC

  • Image Enhancement: BLC/3D DNR/HLC/SmartIR

  • Wide Dynamic Range: DWDR

  • SNR: ≥ 52 dB

  • Image Parameters Switch: Yes

  • Privacy Mask: Up to 4 Masks

  • ROI: 1 Region

  • OSD Setting: Yes

• Audio

  • Audio Communication: N/A

  • Audio Input: N/A

  • Audio Output: N/A

  • Audio Compression: N/A

  • Audio Sampling Rate: N/A

  • Environment Noise Filtering: N/A

  • Audio Bit Rate: N/A

• Network

  • Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

  • ONVIF: Yes

  • API: ONVIF

  • Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

  • Client: VIGI App, VIGI Security Manager, Web UI

  • Web Browser Compatibility: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above

  • Cloud: Yes

  • Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

• Alarm and Event Management

  • Smart Event:

    • Human & Vehicle Classification

    • Area Intrusion Detection

    • Line-Crossing Detection

    • People Detection

    • Vehicle Detection

    • Region Entering Detection

    • Region Exiting Detection

    • Object Abandoned Detection

    • Object Removal Detection

  • Basic Event:

    • Motion Detection

    • Video Tampering Detection

    • Exception (Illegal Login)

  • Alarm Linkage: Message Push

  • Output Notification: Message Push

• Interfaces

  • Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

  • Alarm: N/A

  • Reset Button: N/A

  • Power: DC Power Port

  • On-board Storage: N/A

  • Built-in Microphone: N/A

  • Built-in Speaker: N/A

• General

  • Operating Temperature: -30–60 °C

  • Storage Temperature: -40–60 °C

  • Operating Humidity: 95% or Less (Non-Condensing)

  • Storage Humidity: 95% or Less (Non-Condensing)

  • Package Contents:

    • VIGI Network Camera

    • Quick Start Guide

    • Waterproof Cable Attachments

    • Mounting Accessories

  • Material: Plastic

  • Net Weight: 0.2 Kg

  • Gross Weight: 0.35 Kg

  • Power Supply:

    • 12V DC ± 5%, Max. 5 W (5.5mm Coaxial Power Plug)

    • PoE: 802.3af/at, class 0, Max. 5.5 W

  • Protection: IP67

  • Product Dimensions: 174 × 74 × 71 mm

  • Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
