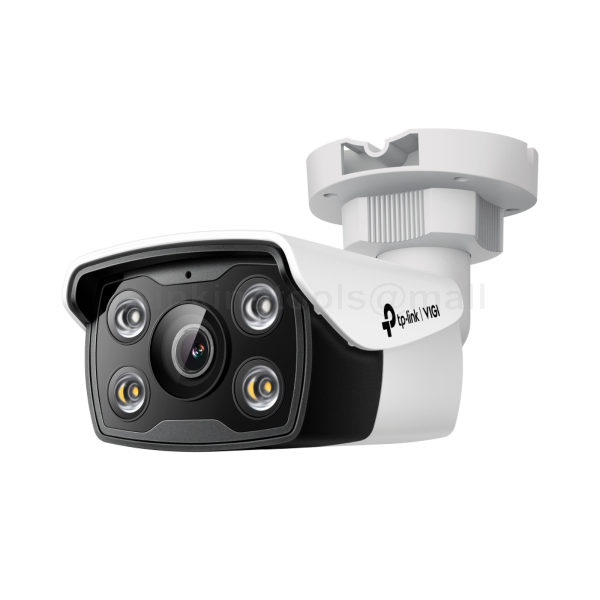

TPLINK VIGI C340-2.8 4MP OUTDOOR FULL COLOR BULLET NETWORK CAMERA

SPECIFICATIONS:

• CAMERA

  • Image Sensor: 1/3” Progressive Scan CMOS

  • Shutter Speed: 1/3 to 1/10000 s

  • Slow Shutter: Yes

  • Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light

  • Day/Night Mechanism: IR Cut Filter

  • Day/Night Switch: Unified/Scheduled/Auto

• LENS

  • Type: Fixed Focal Lens

  • Focal Length Options: 2.8 mm / 4 mm / 6 mm

  • Aperture:

    • 2.8 mm: F1.6

    • 4 mm: F1.6

    • 6 mm: F1.6

  • Field of View (FOV):

    • 2.8 mm: Horizontal 102.5°, Vertical 55.2°, Diagonal 122.1°

    • 4 mm: Horizontal 76.3°, Vertical 40.6°, Diagonal 90.2°

    • 6 mm: Horizontal 50.6°, Vertical 27.8°, Diagonal 58.8°

  • Lens Mount: M12

  • DORI Distance:

    • 2.8 mm: Detect 64 m (209 ft), Observe 27 m (87 ft), Recognize 13 m (42 ft), Identify 6 m (21 ft)

    • 4 mm: Detect 80 m (262 ft), Observe 33 m (109 ft), Recognize 16 m (52 ft), Identify 8 m (26 ft)

    • 6 mm: Detect 128 m (420 ft), Observe 53 m (175 ft), Recognize 26 m (84 ft), Identify 13 m (42 ft)

  • Angle Adjustment (Manual):

    • Pan: 0° to 360°

    • Tilt: 0° to 90°

    • Rotation: 0° to 360°

• ILLUMINATOR

  • IR LED:

    • Quantity: 2

    • Range: 30 m

    • Wavelength: 850 nm

  • White LED:

    • Quantity: 2

    • Range: 30 m

  • Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

• VIDEO

  • Max. Resolution: 2560 x 1440

  • Main Stream:

    • Frame Rate: 50Hz (1fps, 5fps, 10fps, 15fps, 20fps, 25fps), 60Hz (1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps)

    • Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

  • Sub-Stream:

    • Frame Rate: 50Hz (1fps, 5fps, 10fps, 15fps, 20fps, 25fps), 60Hz (1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps)

    • Resolution: 640x480, 352x288, 320x240

  • Bit Rate Control: CBR, VBR

  • Video Compression:

    • Main Stream: H.265+/H.265/H.264+/H.264

    • Sub-Stream: H.265/H.264

  • Video Bit Rate:

    • Main Stream: 256 Kbps to 4 Mbps

    • Sub-Stream: 64 Kbps to 512 Kbps

• IMAGE

  • Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC, Rotation (90°/270°)

  • Image Enhancement: BLC/3D DNR/HLC/SmartIR

  • Wide Dynamic Range: DWDR

  • SNR: ≥ 52 dB

  • Privacy Mask: Up to 4 Masks

  • ROI: 1 Region

  • OSD Setting: Yes

• AUDIO

  • Audio Communication: Two-Way Audio

  • Audio Input: Yes

  • Audio Output: Yes

  • Audio Compression: Yes

  • Audio Sampling Rate: 8 KHz

  • Environment Noise Filtering: Yes

  • Audio Bit Rate: 64 Kbps (G.711 alaw)

• NETWORK

  • Protocols:

    • TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

  • ONVIF: Yes

  • API: Open Network Video Interface (Profile S)

  • Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

  • Client: VIGI App, VIGI Security Manager, Web UI

  • Web Browser Compatibility: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above

  • Cloud: Yes

  • Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

• ALARM AND EVENT MANAGEMENT

  • Smart Events:

    • Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Abnormal Sound Detection, People Detection, Vehicle Detection

  • Basic Events:

    • Motion Detection (Enhanced with Human & Vehicle Classification), Video Tampering Detection, Exception (Illegal Login)

  • Alarm Linkage:

    • Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

  • Output Notification: Message Push

• INTERFACES

  • Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

  • Reset Button: Yes

  • Power: DC Power Port

  • On-board Storage: Built-In Memory Card Slot, Supports MicroSD Card (up to 512 GB)

  • Built-in Microphone: Yes

  • Built-in Speaker: Yes

• GENERAL

  • Operating Temperature: -30–60 °C

  • Storage Temperature: -40–60 °C

  • Operating Humidity: 95% or Less (Non-Condensing)

  • Storage Humidity: 95% or Less (Non-Condensing)

  • Package Contents:

    • VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories

  • Material: Plastic

  • Net Weight: 0.34 Kg

  • Gross Weight: 0.50 Kg

  • Power Supply:

    • 12V DC ± 5%, Max. 7 W, 5.5mm Coaxial Power Plug

    • PoE: 802.3af/at, class 0, Max. 8 W

  • Protection: IP67 Waterproof

  • Product Dimensions (L x W x H): 78.5 × 188.0 × 71.5 mm (3.09 × 7.40 × 2.81 in)

  • Certifications: CE, NTRA, VCCI, BSMI, FCC
