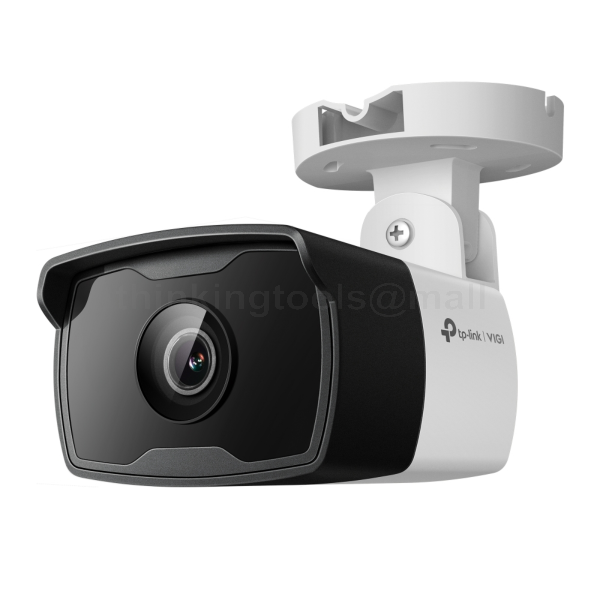

TPLINK VIGI C340I-2.8 4MP OUTDOOR IR BULLET NETWORK CAMERA
The VIGI C340I is a 4MP Outdoor IR Bullet Network Camera designed for high-definition surveillance, equipped with advanced human and vehicle classification for precise event notifications. It features smart detection capabilities and video enhancement technologies like Smart IR and WDR to ensure clear images in various conditions. With waterproof IP67 protection and flexible power options, this camera offers reliable performance for outdoor security needs.
SPECIFICATIONS:
-
CAMERA
-
Image Sensor: 1/3” Progressive Scan CMOS
-
Shutter Speed: 1/3 to 1/10000 s
-
Slow Shutter: Yes
-
Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
-
Day/Night Mechanism: IR Cut Filter
-
Day/Night Switch: Day/Night/Auto/Schedule-Switch
-
Digital Noise Reduction: 3D DNR
-
WDR: DWDR
-
Weatherproof Rating: IP67
-
IR Working Distance: 30m
-
-
LENS
-
Type: Fixed Focal Lens
-
Focal Length: 2.8 mm / 4 mm / 6 mm
-
Aperture: 2.8 mm: F2.2; 4 mm: F2.0; 6 mm: F2.0
-
Field of View (FOV):
-
2.8 mm: H: 88.8°, V: 48.9°, D: 106.5°
-
4 mm: H: 75.1°, V: 41.5°, D: 88.7°
-
6 mm: H: 47.7°, V: 26.5°, D: 56°
-
-
DORI Distance:
-
2.8 mm: Detect: 60 m, Observe: 25 m, Recognize: 12 m, Identify: 6 m
-
4 mm: Detect: 80 m, Observe: 33 m, Recognize: 16 m, Identify: 8 m
-
6 mm: Detect: 120 m, Observe: 50 m, Recognize: 24 m, Identify: 12 m
-
-
Lens Mount: M12
-
-
ILLUMINATOR
-
IR LED Quantity: 2
-
IR Range: 30m
-
Wavelength: 850nm
-
Illuminator Control: Auto/Scheduled/Always on/Always off
-
-
VIDEO
-
Max Resolution: 2560 × 1440
-
Main Stream Frame Rate:
-
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
-
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
-
-
Sub-Stream Frame Rate:
-
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
-
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
-
-
Bit Rate Control: CBR, VBR
-
Video Compression:
-
Main Stream: H.265+/H.265/H.264+/H.264
-
Sub-Stream: H.265/H.264
-
-
Video Bit Rate:
-
Main Stream: 256 Kbps to 4 Mbps
-
Sub-Stream: 64 Kbps to 512 Kbps
-
-
-
-
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Rotation (90°/270°)
-
Image Enhancement: BLC/3D DNR/HLC/SmartIR
-
Wide Dynamic Range: DWDR
-
SNR: ≥ 52 dB
-
Privacy Mask: Up to 4 Masks
-
Region of Interest (ROI): 1 Region
-
-
AUDIO
-
Audio Communication: N/A
-
-
NETWORK
-
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS
-
ONVIF: Yes
-
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
-
Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
-
Web Browser Compatibility: Google Chrome®, Firefox®, Safari®, Microsoft® Edge
-
Cloud Support: Yes
-
Security Features: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
-
-
ALARM AND EVENT MANAGEMENT
-
Smart Events: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, Object Detection
-
Basic Events: Motion Detection, Video Tampering Detection
-
Alarm Linkage: Message Push
-
-
INTERFACES
-
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
-
Power: DC Power Port
-
Built-in Microphone/Speaker: Yes
-
-
GENERAL
-
Operating Temperature: -30–60 °C
-
Storage Temperature: -40–60 °C
-
Operating Humidity: 95% or Less (Non-Condensing)
-
Package Contents: VIGI Network Camera, Quick Start Guide, Mounting Accessories
-
Material: Plastic
-
Net Weight: 0.2 Kg
-
Gross Weight: 0.35 Kg
-
Power Supply: 12V DC ± 5%, Max 5W
-
Protection Rating: IP67
-
Product Dimensions: 73× 174 × 71 mm
-
-
CERTIFICATIONS
-
Certifications: CE, BSMI, VCCI, ONVIF
-
