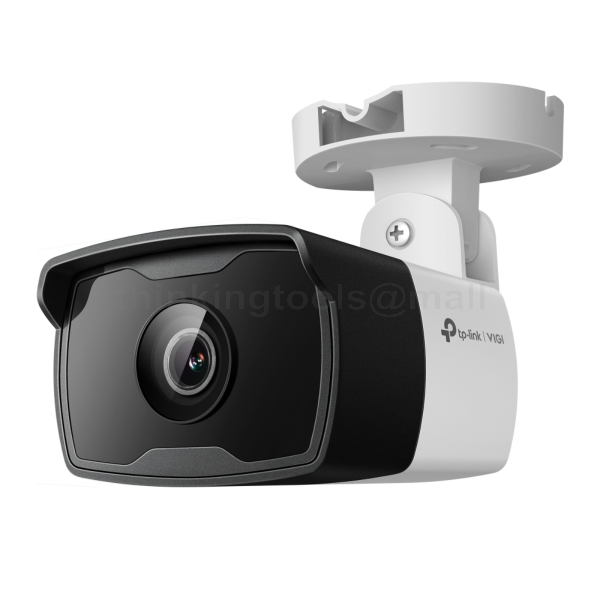

main product photo

TPLINK VIGI C340I-6 4MP OUTDOOR IR BULLET NETWORK CAMERA

0 Review
₱2,450.00
Availability: In stock
SKU:
SUR-TL-CAM-VIGIC340I-6

The VIGI C340I is a 4MP outdoor IR bullet network camera designed for high-definition surveillance, offering exceptional detail and clarity. It features advanced human and vehicle classification for accurate event notifications, along with smart detection capabilities that alert you to significant activities in monitored areas. With its IP67 waterproof rating, multiple lens options, and flexible management through various interfaces, the C340I ensures reliable performance for your security needs.

Brands:

Specifications:



  • Camera:

    • Image Sensor: 1/3” Progressive Scan CMOS

    • Shutter Speed: 1/3 to 1/10000 s

    • Slow Shutter: Yes

    • Minimum Illumination: Color: 0.01 Lux; 0 Lux with IR

    • Day/Night Mechanism: IR Cut Filter

    • Day/Night Switch: Unified/Scheduled/Auto

  • Lens:

    • Type: Fixed Focal Lens

    • Focal Length: 2.8 mm / 4 mm / 6 mm

    • Aperture:

      • 2.8 mm: F2.2

      • 4 mm: F2.2

      • 6 mm: F2.0

    • Field of View:

      • 2.8 mm: H: 88.8°, V: 48.9°, D: 106.5°

      • 4 mm: H: 75.1°, V: 41.5°, D: 88.7°

      • 6 mm: H: 47.7°, V: 26.5°, D: 56°

    • Lens Mount: M12

    • DORI Distance:

      • 2.8 mm: Detect: 60 m, Observe: 25 m, Recognize: 12 m, Identify: 6 m

      • 4 mm: Detect: 80 m, Observe: 33 m, Recognize: 16 m, Identify: 8 m

      • 6 mm: Detect: 120 m, Observe: 50 m, Recognize: 24 m, Identify: 12 m

    • Angle Adjustment: Pan: -90° to 90°, Tilt: -90° to 90°

  • Illuminator:

    • IR LED Quantity: 2

    • IR Range: 30 m

    • Wavelength: 850nm

    • Illuminator Control: Auto/Scheduled/Always on/Always off

  • Video:

    • Max Resolution: 2560 × 1440

    • Main Stream Frame Rate:

      • 50Hz: 1fps to 25fps

      • 60Hz: 1fps to 30fps

    • Main Stream Resolutions: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

    • Sub-Stream Frame Rate: 1fps to 30fps

    • Sub-Stream Resolutions: 640x480, 352x288, 320x240

    • Bit Rate Control: CBR, VBR

    • Video Compression: H.265+/H.265/H.264+/H.264

  • Image:

    • Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance

    • Image Enhancement: BLC, 3D DNR, HLC, SmartIR

    • Wide Dynamic Range: DWDR

    • SNR: ≥ 52 dB

    • Privacy Mask: Up to 4 Masks

  • Audio:

    • Audio Communication: N/A

  • Network:

    • Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS

    • ONVIF: Yes

    • Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

    • Client: VIGI App, VIGI Security Manager, Web UI

    • Web Browser Compatibility: Chrome, Firefox, Safari, Edge

    • Cloud Support: Yes

    • Security: Password Protection, HTTPS Encryption, IP Address Filter

  • Alarm and Event Management:

    • Smart Events: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection

    • Basic Events: Motion Detection, Video Tampering Detection

    • Alarm Linkage: Message Push

  • Interfaces:

    • Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port

    • Power Supply: 12V DC ± 5%, PoE: 802.3af/at

  • General:

    • Operating Temperature: -30–60 °C

    • Storage Temperature: -40–60 °C

    • Protection: IP67

    • Dimensions (L x W x H): 73 × 174 × 71 mm

    • Net Weight: 0.2 Kg

    • Gross Weight: 0.35 Kg

    • Certifications: CE, EAC, UKCA, RCM, BSMI, VCCI, FCC, IC
