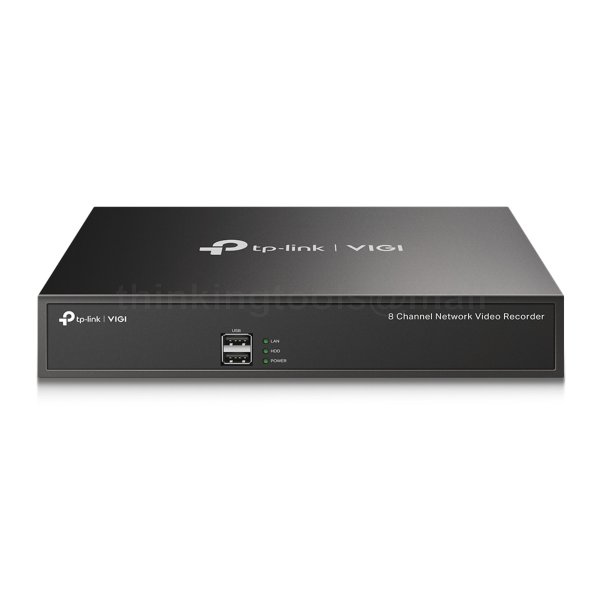

TPLINK VIGI NVR1008H 8 CHANNEL NETWORK VIDEO RECORDER

0 Review
₱3,140.00
Availability: Out of stock
SKU:
SUR-TL-NVR-VIGINVR1008H

The VIGI NVR1008H is an 8-channel network video recorder designed for seamless security management. It supports 24/7 continuous recording with up to 10 TB of storage, allowing for quick access to footage from connected cameras. Featuring H.265+ compression, remote monitoring through the VIGI app, and two-way audio capabilities, this NVR ensures high-quality surveillance while maximizing storage efficiency and compatibility with various IPC brands.

Brands:

Specifications:



  • Video and Audio

    • IP Video Input: 8-Channel

    • Incoming Bandwidth: 80 Mbps

    • Outgoing Bandwidth: 60 Mbps

    • HDMI Output Resolution:

      • 1 Channel:

        • 3840 × 2160/30Hz

        • 1920 × 1080/60Hz

        • 1680 × 1050/60Hz

        • 1440 × 900/60Hz

        • 1280 × 1024/60Hz

        • 1280 × 720/60Hz

    • VGA Output Resolution:

      • 1 Channel:

        • 1920 × 1080/60Hz

        • 1680 × 1050/60Hz

        • 1440 × 900/60Hz

        • 1280 × 1024/60Hz

        • 1280 × 720/60Hz

    • Video Output Mode: HDMI/VGA Simultaneous Output

    • Multi-View Display: 1/4/6/8

  • Decoding

    • Audio Compression: G.711A/G.711U/G.726

    • Decoding Format: H.265+/H.265/H.264+/H.264

    • Video Compression: H.265+/H.265/H.264+/H.264

    • Record Resolution: 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

    • Live View/Playback Resolution: 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

    • Synchronous Playback:

      • 4 Channel

      • Capability: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

  • Record Management

    • Record Mode:

      • Manual Recording

      • Scheduling Recording

      • Motion Detection Recording

    • Playback Mode:

      • Instant Playback

      • Regular Playback

      • Tag Playback

      • Event Playback

    • Backup Mode:

      • Regular Backup

      • Video Clip Backup

    • Playback Functions:

      • Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

  • Network

    • Protocol: TCP/IP, DHCP, DNS, NTP, UPnP

    • Mobile Phone Access: Android, iOS

    • Web Browser Compatibility: Chrome (57+), Firefox (52+), Edge (91+)

    • Interoperability: ONVIF, CGI

  • External Interface

    • Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

    • USB Interface: 2× USB 2.0

    • Audio Interface: 1 Audio In; 1 Audio Out

    • Power: 1× DC Jack

    • Reset Button: 1

    • HDMI: 1

    • VGA: 1

  • Hard Disk

    • SATA: 1 SATA Interface

    • Capacity: Up to 10 TB

  • Alarm

    • General Alarms:

      • Motion Detection

      • Video Tampering

      • Line-Crossing Detection

      • Intrusion Detection

      • Region Entering/Exiting Detection

      • Object Abandoned/Removal Detection

      • Vehicle Detection

      • Human Detection

    • Anomaly Alarms:

      • Video Loss

      • Offline and IP Conflict

      • Disk Exception

      • Login Exception

    • Alarm Linkage:

      • Recording

      • White Light Alarm

      • Buzzer

      • Log

      • Audible Alarm

  • General

    • Operating Temperature: -10–55 °C

    • Storage Temperature: -40–70 °C

    • Storage Humidity: 10%~90% RH Non-Condensing

    • Weight: 578.5 g

    • Package Contents:

      • VIGI Network Video Recorder

      • Power Adapter

      • HDD Screws

      • Mouse

      • Quick Installation Guide

    • Dimensions (W x D x H): 246.2 × 148.2 × 45 mm

    • Power Supply: DC 12V/1.5A

    • Power Consumption: 4.25 W (without disk)

    • Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
